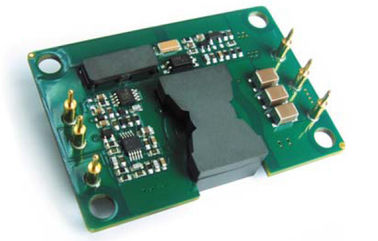

EN60950 Custom 20V to 12V DC-DC Converter 30Watt XD30-12S12-POC

EN60950 Custom 20V to 12V DC-DC Converter 30Watt XD30-12S12-POC

EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: Enargy
Model Number: XD30-12S12-POC

شروط الدفع والشحن:

Minimum Order Quantity: 1pcs
الأسعار: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
ﺎﺘﺼﻟ ﺍﻶﻧ
مفصلة وصف المنتج

DC-DC Converters 30W Output 12V XD30-12S12-POC





Key Features

Output power: 30W

Wide input range: 10-20Vdc

High conversion efficiency: Up to 90%

Line regulation to ±1%

Load regulation to ±1%

Fixed operating frequency

Isolation Voltage :1500V

Enable (ON/OFF) Control

Output over-voltage protection

Output over-load protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: -8~+10%



Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.



Product’s Introduction

The XD series is an independently regulated single output converter that uses a industry nonstandard brick package. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.



1. Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     22 Vdc Continuous, non-operating
    20 Vdc Continuous, operating
    22 Vdc Operating transient protection,<100mS
Isolation voltage     2000 Vdc Input to output
Operating Temperature -55   100
Storage Temperature -55   125
Enable to -Vin Voltage -2.0   15 Vdc



1.2 Input Characteristics

Parameter Min Typ Max Units Notes
input voltage range 10 12 20 Vdc Continuous
Under-Voltage Lockout 9.0 9.5 9.9 Vdc Turn - On Threshold
8.5 9.0 9.5 Vdc Turn - Off Threshold
Maximum Input Current     5 A Full load;10Vdc Input
Efficiency   88   %

Full load, rating input voltage

Figures 1-4

Dissipation   4 8 W No load
Disabled Input Current     5 mA Enable pin low

Recommend External Input

Capacitance

  100   uF Typical ESR 0.1-0.2W



1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set point 11.88 12.00 12.12 Vdc Nominal input; No load
Output Voltage Range 11.80 12.00 12.20 Vdc No load to max load
Output Current Range 0   2.5 A

Subject to thermal derating, 100LFM;

Figures 5 - 8

Line Regulation   ±0.2 ±1 % Low line to high line; full load
Load Regulation   ±0.2 ±1 % No load to full load; nominal input
Temperature Regulation   ±0.002 ±0.02 % / °C Over operating temperature range
Current limit   3.0   A Output voltage 90% of nominal
Short circuit current 0 10 20 A Output voltage <250 mV
Ripple (RMS)   15   mV

Nominal input; full load; 20 MHz

bandwidth; See Figure 13

Noise(Peak-to-Peak)   75   mV
Maximum Output Cap.     2200 μF Nominal input; full load
Output Voltage Trim -8   +10 % Nominal input; full load



1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes

Change in Output Current

(di/dt= 0.1A/us)

  350   mV 50% to 75% to 50% Iout max; Figure 11

Change in Output Current

(di/dt= 2.5A/us)

  400   mV 50% to 75% to 50% Iout max; Figure 12
Settling Time     300 uS To within 1% Vout nom.
Turn-on Time   5   mS Full load; Vout=90% nom. Figure 9
Shut-down fall time   2   mS Full load; Vout=10% nom. Figure 10
Output voltage overshoot     5 %



1.5 Functional Characteristics

Parameter Min Typ Max Units Notes
Switching Frequency 180 200 230 KHz Regulation stage and Isolation stage
Trim(Pin6) See part 7.2 Voltage Trim(Pin6)
Output Voltage Trim     10 % Trim Up, Trim Pin to (-) Vout.
    8 % Trim Down, Trim Pin to (+) Vout.
Enable(ON/OFF)Control(Pin1) See part 7.1

Enable Voltage

Enable Source Current

    15 Vdc Enable pin floating
    1 mA

Enable (ON/OFF) control

Positive Logic

1.0   15 Vdc ON-Control, Logic high or floating
-0.5   0.3 Vdc OFF-Control, Logic low
Over-Voltage Protection 110   130 % No load, Voltage Limit Threshold
Over-Load Protection 110     %

Current-Mode, Pulse by Pulse Current

Limit Threshold,(%Rated Load)

Short-Circuit Protection     65

Type: Hiccup Mode, Non-Latching,

Auto-Recovery,Threshold,Short-Circuit

Resistance



1.6 Isolation Characteristics

Parameter Min Typ Max Units Notes
Isolation Voltage 1500     Vdc Input to Output
Isolation Resistance 10

At 500VDC to test it when atmospheric

pressure and R.H. is 90%

Isolation Capacitance   1000   pF



2. General Characteristics

Parameter Min Typ Max Units Notes
Weight   0.88(25)   Oz (g) Open Frame
MTBF ( calculated ) 1     MHrs1

TR-NWT-000332; 80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter Min Typ Max Units Notes
Operating Temperature -55   +100 Extended, base PCB temperature
Storage Temperature -55   +125 Ambient
Temperature Coefficient     ±0.02 %/℃
Humidity 20   95 %R.H. Relative Humidity, Non - Condensing



4. Standards Compliance

Parameter Notes
UL/cUL60950
EN60950
GB4943
Needle Flame Test (IEC 695-2-2) test on entire assembly; board & plastic components UL94V-0 compliant
IEC 61000-4-2



5. Qualification Specification

Parameter Notes
Vibration 10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis
Mechanical Shock 100g min, 2 drops in x and y axis, 1 drop in z axis
Cold(in operation) IEC60068-2-1 Ad
Damp heat IEC60068-2-67 Cy
Temperature Cycling -40°C to 100°C, ramp 15°C/min., 500 cycles
Power/Thermal Cycling Vin = min to max, full load, 100 cycles
Design Marginality Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load
Life Test 95% rated Vin and load, units at derating point, 1000 hours
Solderability IEC60068-2-20



6. Typical Wave And Curves

EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC



Figure 1: Efficiency at nominal output voltage vs. load
current for minimum, nominal, and maximum input voltage
at 25°C.

Figure 2: Efficiency at nominal output voltage and 60%
rated power vs. airflow rate for ambient air temperatures of
25°C, 40°C, and 55°C (nominal Vin).



EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure 3: Power dissipation at nominal output voltage vs.
load current for minimum, nominal, and maximum input
voltage at 25°C.

Figure 4: Power dissipation at nominal output voltage and
60% rated power vs. airflow rate for ambient air
temperatures of 25°C, 40°C, and 55°C (derating input
voltage).



EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure 5: Maximum output power derating curves vs.
ambient air temperature for airflow rates of 0 LFM through
400 LFM with air flowing from pin 1 to pin 3 (derating input
voltage).

Figure 6: Thermal plot of converter at 2.5 amp load current
(30W) with 25°C air flowing at the rate of 200 LFM. Air is
flowing across the converter from pin 1 to pin 3 (derating
input voltage).



EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC



Figure 7: Maximum output power-derating curves vs.
ambient air temperature for airflow rates of 0 LFM through
400 LFM with air flowing from input to output (nominal
input voltage).

Figure 8: Thermal plot of converter at 2.5 amp load current
(30W) with 25°C air flowing at the rate of 200 LFM. Air is
flowing across the converter from input to output (nominal
input voltage).



EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure 9: Turn-on transient at full load (resistive load) (10
ms/div).Input voltage pre-applied. Ch 1: Vout (10V/div). Ch
2: ON/OFF input(10V/div)

Figure 10: Shut-down fall time at full load (10 ms/div).
Ch 1: Vout (10V/div)
Ch 2: ON/OFF input (10V/div)



EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure 11: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Load
cap: 10μF, 100 mW ESR tantalum capacitor and 0.1μF
ceramic capacitor. Ch 1: Vout (500mV/div).

Figure 12: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs). Load
cap: 10μF, 30 mW ESR tantalum capacitor and 0.1μF
ceramic cap. Ch 1: Vout (500mV/div).



EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure 13: Output voltage ripple at nominal input voltage
and rated load current (20 mV/div). Load capacitance: 1μF
ceramic capacitor and 10μF tantalum capacitor. Bandwidth:
20 MHz.



7. Function Specifications
7.1 Enable (ON/OFF) Control (Pin 1)

The Enable pin allows the power module to be switched on and off electronically. The Enable (ON/OFF) function
is useful for conserving battery power, for pulsed power application or for power up sequencing.
The Enable pin is referenced to the -Vin. It is pulled up internally, so no external voltage source is required. An
open collector (or open drain) switch is recommended for the control of the Enable pin.
When using the Enable pin, make sure that the reference is really the -Vin pin, not ahead of EMI filtering or
remotely from the unit. Optically coupling the control signal and locating the opto coupler directly at the module will
avoid any of these problems. If the Enable pin is not used, it can be left floating (positive logic) or connected to the -Vin
pin (negative logic).Figure A details five possible circuits for driving the ON/OFF pin. Figure B is a detailed look of
the internal ON/OFF circuitry.

EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure A: Various circuits for driving the ON/OFF pin.

Figure B: Internal ON/OFF pin circuitry



7.2 Voltage Trim (Pin 6)
Output voltage can be adjusted up or down with an external resistor. The output voltage will increase when an
external trimming resistor is connected between the Trim and Com pin. The output voltage will decrease when an
external trimming resistor is connected between Trim and Vout(+) pin. (Figure C).
Output Trim

Trim-Up Trim Pin to Com
Trim-Down Trim Pin to Vout(+)

EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC



Figure C: Output-voltage Trim external circuit



7.3 Protection Features
·Input Under-Voltage Lockout: The converter is designed to turn off when the input voltage is too low, helping avoid
an input system instability problem, The lockout circuitry is a comparator with DC hysteresis. When the input voltage is
rising, it must exceed the typical Turn-On Voltage Threshold value(listed on the specification page) before the converter
will turn on. Once the converter is on, the input voltage must fall below the typical Turn-Off Voltage Threshold value
before the converter will turn off.
·Output Current Limit: The maximum current limit remains constant as the output voltage drops. However, once the
impedance of the short across the output is small enough to make the output voltage drop below the specified Output
DC Current-Limit Shutdown Voltage, the converter into hiccup mode indefinite short circuit protection state until the
short circuit condition is removed. This prevents excessive heating of the converter or the load board.
·Over-Temperature Shutdown: A temperature sensor on the converter senses the average temperature of the module.
The thermal shutdown circuit is designed to turn the converter off when the temperature at the sensed location reaches
the Over-Temperature Shutdown value. It will allow the converter to turn on again when the temperature of the sensed
location falls by the amount of the Over-Temperature Shutdown Restart Hysteresis value.



8. Typical Application And Design Consideration
8.1 Typical Application Circuit

EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure D: Typical application circuit (negative logic unit, permanently enabled).







EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC



Figure E: Input Filtering



8.2 Input Filtering

DC-DC converters, by nature, generate significant
levels of both conducted and radiated noises. The
conducted noises included common mode and differential
mode noises. The common mode noise is directly related
to the effective parasitic capacitance between the power
module input conductors and chassis ground. The
differential mode noise is across the input conductors. It is
recommended to have some level of EMI suppression to
the power module.
Conducted noise on the input power lines can occur
as either differential or common-mode noise currents. The
required standard for conducted emissions is EN55022
Class A (FCC Part15). (See Figure E)



9. Test Method
9.1 Output Ripple & Noise Test

The output ripple is composed of fundamental frequency ripple and high frequency switching noise spikes. The
fundamental switching frequency ripple (or basic ripple) is in the 100KHz to 1MHz range; the high frequency switching
noise spike (or switching noise) is in the 10 MHz to 50MHz range. The switching noise is normally specified with 20
MHz bandwidth to include all significant harmonics for the noise spikes.
The easiest way to measure the output ripple and noise is to use an oscilloscope probe tip and ground ring pressed
directly against the power converter output pins, as shown below. This makes the shortest possible connection across
the output terminals. The oscilloscope probe ground clip should never be used in the ripple and noise measurement. The
ground clip will not only act as an antenna and pickup the radiated high frequency energy, but it will introduce the
common-mode noise to the measurement as well.
The standard test setup for ripple & noise measurements is shown in Figure F. A probe socket (Tektronix, P.N.
131.0258-00) is used for the measurements to eliminate noise pickup associated with long ground clip of scope probes.



EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POCEN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC

Figure F: Ripple & Noise Standard Testing Means.



10. Physical Information
10.1 Mechanical Outline





EN60950 Custom 20V to 12V DC-DC Converter 30Watt  XD30-12S12-POC



10.2 Pin Designations

Pin No. Name Function
1 Enable TTL input to turn converter ON and OFF, referenced to Vin(-), with internal pull up.
2 Vin(-) Negative input voltage
3 Vin(+) Positive input voltage
4 Vout(+) Positive output voltage
5 Com Ground
6 Trim Output voltage trim. Leave TRIM pin open for nominal output voltage.









تفاصيل الاتصال
Shenzhen YONP Power Co.,Ltd
إرسال استفسارك مباشرة لنا (0 / 3000)

منتجات أخرى
