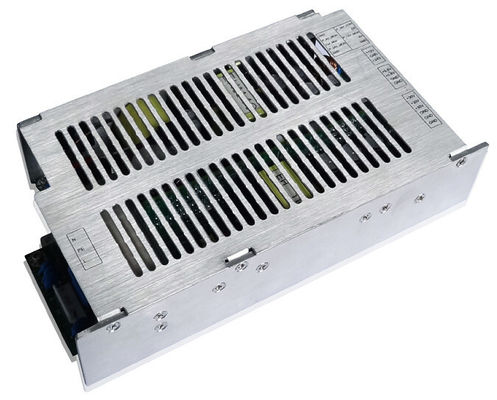

500W AC-DC Power Supplies Output 30V / 12A , 5.8V / 9A , 24V / 2.5A , 12V / 2.5A SC500-220Q30

تفاصيل المنتج:

Place of Origin:	China
اسم العلامة التجارية:	Enargy
Model Number:	SC500-220Q30

شروط الدفع والشحن:

Minimum Order Quantity:	1pcs
الأسعار:	Negotiation
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	15000Pcs/week

اتصل

مفصلة وصف المنتج

تسليط الضوء:	12v ac/dc power supply

AC-DC Power Supplies 500W Output 30V/12A,5.8V/9A,24V/2.5A,12V/2.5A SC500-220Q30

Key Features

Input range:165~270Vac

Quadruple outputs:30V/12A,5.8V/9A,24V/2.5A,12V/2.5A

High efficiency:87%

Line regulation: ≤±2%

Load regulation: ≤±2%

Short circuit protection

Output over current protection

Output over voltage protection

Input over voltage protection

Input under voltage lock-out

Over temperature protection

RoHS compliant

Natural cool

Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.

Electric Characteristics

Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Rated input voltage		220		Vac
AC input voltage range	165		270	Vac
AC input frequency range	47		63	Hz
Max. input current			3.5	A	Min. input voltage, full load
Input inrush current			40	A	Max. input voltage,25℃, first start
Efficiency	85	87		%	Rated input voltage, rated load

Output Characteristics

Parameter		Min	Typ	Max	Units	Notes
Output voltage range	30V	24	30	31	Vdc
	5.8V	5.6	5.8	6	Vdc
	24V	23	24	25	Vdc	Enable on/off
	12V	11	12	13	Vdc	Enable on/off
Output current range	30V	0	9	12	A
	5.8V	0	6	9	A
	24V	0	2	2.5	A
	12V	0	2	2.5
Line Regulation				±2	%
Load Regulation				±2	%
Temperature Regulation			±0.02		% / °C	Over operating temperature range
Ripple & noise	30V			400	mV	Rated input, full load, 20 MHz bandwidth
	5.8V			116	mV
	24V			280	mV
	12V			240	mV
Turn-on rise time				500	ms	Full load,10%~90% Vout
Turn-on delay time				4	s	220Vac, Full load
Output voltage overshoot				±5	%

Protection Characteristics

Parameter			Min	Typ	Max	Units	Notes
Input under voltage lock out	Turn-on voltage threshold		155		165	Vac
Input under voltage lock out	Turn-off voltage threshold		135		145	Vac
Input over voltage protection	Protect voltage		285		305	Vac
Input over voltage protection	Recovery voltage		275		295	Vac
Output over voltage protection		30V	32		35	Vdc	Hiccup
Output over voltage protection		5.8V			7.5	Vdc	Hiccup
Short – Circuit Protection					10	mΩ	Hiccup
Over-temperature protection							Auto recovery
Input voltage detector			150-290Vac convert to 0.5-3.1Vdc linear change				Load conditions: 30V/9.5A,5.8V/6A,12V/2A,24V/2A
Input current detector			0-3A convert to 0.5-3.1Vdc linear change				Load conditions: 30V/9.5A,5.8V/6A,12V/2A,24V/2A

General Characteristics

Parameter	Min	Typ	Max	Units	Notes
MTBF	100			KHrs	Rated input, full load,25℃
Weight			1500	g

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	-40		+75	℃
Storage temperature	-40		+85	℃
Relative humidity	10		90	%
Storage humidity	10		95	%
Altitude			4000	m
Atmospheric pressure	70		106	KPa

Safety Characteristics

Parameter		Min	Typ	Max	Units	Notes
Isolation voltage	Input to output	1500			Vac	5mA/1min, No arcing and breakdown
	Input to ground	1500			Vac	5mA/1min, No arcing and breakdown
	Output to ground	500			Vdc	5mA/1min, No arcing and breakdown
Isolation resistance	Input to output	10			MΩ	500Vdc/1min, normal atmospheric pressure, 90% humidity
Leakage current	Input to ground			3.5	mA	264Vac,normal condition

EMC Characteristics

Item	Standards	Conditions	Notes
CE	EN301489-1-8.4	Class B	Pass system test
RE	EN301489-1-8.4	Class B	Pass system test
Harmonic	EN301489-1-8.5
Voltage fluctuations and flicker	EN301489-1-8.6
Surge	EN61000-4-5	Differential mode ±2KV,common mode±4KV	Criterion B
DIP	EN61000-4-11 EN55024	Voltage dip to 0%Ut,10ms	Criterion B, test at phase 0, 90, 180 and 270
		Voltage dip to 40%Ut, 20ms
		Voltage dip to 70%Ut,50ms

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.

Environmental Qualification

Parameter	Notes
Vibration	Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis
Mechanical Shock	Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction
Temperature Cycling	-40°C to 55°C, ramp 1°C/min., 6 cycles
Power/Thermal Cycling	Vin = min to max, full load, 100 cycles

Mechanical Outline

Length×width×heigth:210×115.5×52(mm), 8.27×4.55×2.05(in),

500W AC-DC Power Supplies Output 30V / 12A , 5.8V / 9A , 24V / 2.5A , 12V / 2.5A SC500-220Q30 0

Connector designAations

CN9 Model: H101-５/3.96

Pin#	Name
1	L
2	NC
3	PE
4	NC
5	N

J2 Model: H101-５/3.96

Pin#	Name
1	+30V
2	+30V
3	+30V
4	GND
5	GND
6	GND

CON1 Model: H101-4/3.96

Pin#	Name
1	+5.8V
2	+5.8V
3	GND
4	GND

J3 Model: H101-3/3.96

Pin#	Name
1	+12V
2	GND
3	+24V

J１

Pin#	Name	Notes
1	GND	GND
2	P_30V_CON	30V trim
3	P_AC_CON	Input voltage detect
4	ID0	Connect to GND
5	Cur_Mon	Input current detect
6	P_12V_CON	12V Enable
7	P_24V_CON	24V Enable
8	ID1	Connect to GND
9	GND	GND
10	GND	GND
