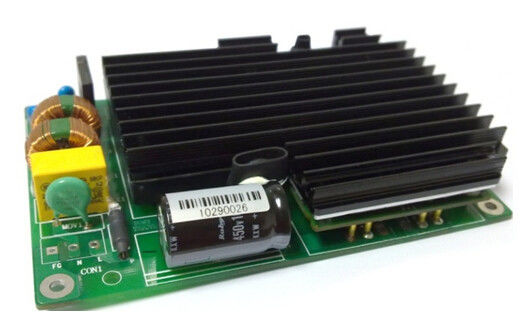

AC-DC Power Supplies 100W Output 48V SC100-220S48
Key Features
High output power: 100W
Input range: 85~264Vac
High efficiency: 85%
Line regulation: ≤±1%
Load regulation: ≤±2%
Fixed frequency: 220kHz
Isolation Voltage :1500Vdc
Short circuit protection
Output over current protection
Over temperature protection
Product Overview
This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Electric Characteristics
Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Rated input voltage |
|
220 |
|
Vac |
|
AC input voltage range |
85 |
|
264 |
Vac |
|
Rated AC input frequency |
|
50/60 |
|
Hz |
|
AC input frequency range |
47 |
|
63 |
Hz |
|
Max. input current |
|
|
2 |
A |
Min. input voltage, full load |
Efficiency |
|
85 |
|
% |
Rated input voltage, rated load |
Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Output voltage range |
47.52 |
48 |
48.48 |
Vdc |
|
|
Output current range |
0.1 |
|
2.1 |
A |
|
|
Line Regulation |
|
|
±1 |
% |
|
|
Load Regulation |
|
|
±2 |
% |
|
|
Ripple & noise |
|
|
800 |
mV |
Rated input, full load, 20 MHz bandwidth |
|
Dynamic response |
Deviation |
|
|
±1 |
% |
25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max,0. 1A/us |
Settling time |
|
|
500 |
uS |
To within 1% Vout nom. |
|
Output voltage overshoot |
|
|
1 |
% |
|
|
Output Capacitance |
|
470 |
|
μF |
|
Protection Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output over load protection |
2.3 |
|
2.8 |
A |
Hiccup |
Short – Circuit Protection |
|
|
10 |
mΩ |
Hiccup |
Over-temperature protection |
|
105 |
|
℃ |
Auto recovery |
General Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
MTBF |
100 |
|
|
KHrs |
TR-NWT-000332, 80% load, 300LFM, 40℃ Ta |
Weight |
|
|
300 |
g |
|
Environmental Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Operating temperature |
-20 |
|
+55 |
℃ |
|
Storage temperature |
-40 |
|
+85 |
℃ |
|
Relative humidity |
10 |
|
90 |
% |
|
Altitude |
|
|
3000 |
m |
|
Safety Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Isolation voltage |
Input to output |
1500 |
|
|
Vdc |
10mA/1min, No arcing and breakdown |
Input to ground |
1000 |
|
|
Vdc |
||
Output to ground |
500 |
|
|
Vdc |
7.5mA/1min, No arcing and breakdown |
|
Isolation resistance |
Input to output |
100 |
|
|
MΩ |
500Vdc/1min, normal atmospheric pressure, 90% humidity |
Environmental Qualification
Parameter |
Notes |
Vibration |
Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis |
Mechanical Shock |
Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction |
Cold(in operation) |
IEC60068-2-1 Ad |
Damp heat |
IEC60068-2-67 Cy |
Temperature Cycling |
-20°C to 85°C, ramp 15°C/min., 500 cycles |
Power/Thermal Cycling |
Vin = min to max, full load, 100 cycles |
Design Marginality |
Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load |
Life Test |
95% rated Vin and load, units at derating point, >5000 hours |
Solder ability |
IEC60068-2-20 |
Standards compliance
Standards |
Notes |
UL/cUL60950 |
|
EN60950 |
|
EN60601-1 |
|
SCA 22.2NO.601.1 |
|
UL2601 |
|
CSA22.2No.60950-1 |
|
Physical Information
Mechanical Outline
Length×width×heigth:135×90×28(mm), 5.32×3.54×1.1(in),
Pin designations
CON1
Pin No. |
Name |
Function |
1 |
FG |
Earth |
2 |
N |
Neutral line |
3 |
L |
Live line |
CON2
Pin No. |
Name |
Function |
1 |
-48V |
Negative output voltage |
2 |
-48V |
Negative output voltage |
3 |
GND |
Positive output voltage |
4 |
GND |
Positive output voltage |
Application Notes: A variety of application notes and technical white papers can be downloaded in pdf format from our website.
