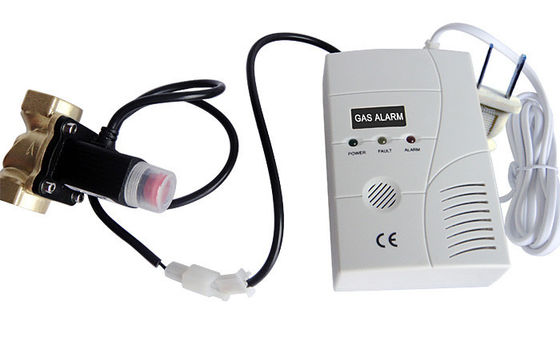

AC / DC power LPG Gas Detector Alarm EN50194 with Auto Shut off Solenoid Valve

AC / DC power LPG Gas Detector Alarm EN50194 with Auto Shut off Solenoid Valve

AC / DC power LPG Gas Detector Alarm EN50194 with Auto Shut off Solenoid Valve
تفاصيل المنتج:
اتصل
مفصلة وصف المنتج
تسليط الضوء:

propane gas detector alarm,home gas leak detector alarm

,

home gas leak detector alarm

Quick Detail:



  • LPG Natural Gas Leak Detector Alarm
  • 220V AC with 9V Battery back up
  • 3 LED Indicator for Power, Fault, Alarm
  • Auto test button
  • Sound and flash alarm
  • Low battery and fault warning
  • Relay output optional, Connect with auto shut off solenoid valve
  • CE, EN50194 approved
  • 5 years lifespan





Description:



1. CE, EN50194 approved, Nature, Butane, Methane, LPG Gas Leak Detector/Alarm;

2. High accurate hot wire type sensor

3. Detecting Natural Gas, LPG, Butane, Methane, Coal Gas and other city Combustible Gases

4. Power Supply : 110V or 220V AC+ 9V battery back-up, automatic switch between AC & DC power

5. LED display: Power, Fault and Alarm Indictor

6. 10% LEL sensitivity

7. Simple installation, Celling or wall mounted

8. Sound (85 decibel) and Flash Alarm

9. Test/reset button, Auto Reset after Gas Clears

10. Can be connected with Auto Shut Off Solenoid Valve and fan





Applications:



Natural gas leak detector is designed to protect you and your family when there is gas leak, and can turn off the valve if necessary. The Gas alarm series were designed to meet both UL1484 and EN50194 standards. Ensures a continuous and precise monitoring of flammable gas. Especially for kitchen safety purpose.







Specifications:



Power Supply

110V or 220V AC with 9V battery back-up

 (Automatic Switch between AC and DC)

Static Current

40mA

Warm-up Time

3-5 Minutes

Humidity Range

10% ~ 95% Relative Humidity (RH)

Working Temp. Range

-10°c ~ +50 °c

Sensitivity

10% LEL

Alarm Reset

Auto Reset after Gas Clears

Sensor

Hot Wire Type Sensor

Indicator Information

Power: Green LED ON
Alarm: Red LED Flashing

Fault: Yellow LED Flashing

Alarm mode

Sound & Flash Alarm; NO/NC is available

Usage

Detecting Natural Gas, LPG gas, City gas etc. Combustible Gas

Relay Output

Connecting with Shut Off Solenoid Valve





Competitive Advantage:



  • Mainly power by 220v/110V AC, with 9V battery backup, while the AC power if off, the battery would auto work to support the detector working
  • Network Natural Gas Leak Detector can be connected with Solenoid valve, while the detectors detecting any gas leak, it would send signal to the valve and auto shut off it to protect safe.
