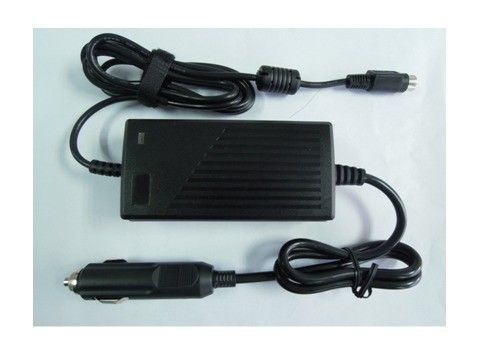

Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter MD60-12S24

Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter MD60-12S24

  • Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter  MD60-12S24
Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter  MD60-12S24
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: Enargy
Model Number: MD60-12S24
شروط الدفع والشحن:
Minimum Order Quantity: 1pcs
الأسعار: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
اتصل
مفصلة وصف المنتج
تسليط الضوء:

medical power adapter

Medical Power Supply 60W  Single Output DC-DC Adapter  MD60-12S24





Key Features

Input voltage range: 9~32Vdc

Output rating: 60W

High efficiency: 86%

Voltage regulation: ≤±1%

Load regulation: ≤±3%

Low ripple&noise:≤240mV

short circuit protection

Output over voltage protection

Output over current protection

Over temperature protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This DC-DC adapter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input voltage range

9

24

32

Vdc



Max. input current





14

A

12Vdc input voltage output  transient 6A

No-load power loss





2

W



Efficiency



86



%

Vin=12Vdc,Io=2.5A,Ta=25℃



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output rating





60

W

Vin=9-32Vdc

Output voltage range

23.52

24

24.48

Vdc

Vin=9-32Vdc

Output current range

0



2.5

A



Voltage regulation





±1

%



Load Regulation





±3

%



Ripple & noise



200

240

mV

Rated input,full load, 20 MHz bandwidth

Turn-on rise time





50

ms

Full load,10%~90% Vout

Output  Capacitance





2200

μF



Output voltage overshoot





±5

%





Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Over voltage protection

26.4

28.8

31.2

Vdc

Hiccup .

Short – Circuit Protection





10

Hiccup

Over temperature protection









Auto- recovery

Output over current protection

6



7.5

A





General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

500





KHrs

TR-NWT-000332; 80% load,300LFM, 40℃ Ta

Weight



350



g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

0



+40



Storage temperature

-40



+85



Relative humidity

0



90

%



Altitude





3000

m



Cooling-down method









Natural cooling

Flame retardant grade









UL94V-0



Mechanical Outline

Length×width×heigth:119×61×35 (mm),4.69×2.4×1.38 (in)

Input 9 ~ 32Vdc Medical Power Supply Single 60W Output DC-DC Adapter  MD60-12S24 0

Connector designations

Connector code

Function

CON1

24Vdc output power line

DC output power line, length 1.5m,16AWG,magnet ring,4pin output,magic stick

CON2

12-32Vdc input power line

Length 600mm,14AWG, internal 20A fuse
