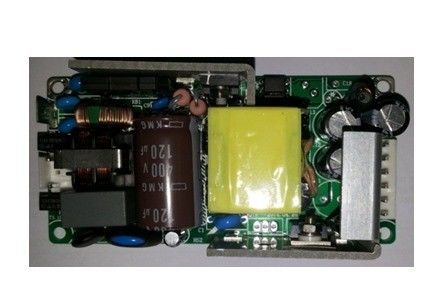

Medical Power Supply 60W Output 15V/4A MD60-30S15
Key Features
AC input range: 90~264Vac
Triple outputs: 15V/4A
High efficiency:85%
Line regulation: ≤±2%
Load regulation: ≤±2%
Low ripple&noise:≤150mV
short circuit protection
Output over current protection
Output over voltage protection
Natural cool
RoHS compliant
UL94V-0 flame-retarded rating
Product Overview
This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Electric Characteristics
Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Rated input voltage |
100 |
|
240 |
Vac |
|
|
AC input voltage range |
90 |
|
264 |
Vac |
||
Rated AC input frequency |
|
50/60 |
|
Hz |
|
|
AC input frequency range |
47 |
|
63 |
Hz |
|
|
Max. input current |
|
|
2 |
A |
Min. input voltage, full load |
|
Input inrush current |
|
|
60 |
A |
230 Vac input voltage, 25℃, first start |
|
Efficiency |
AC input |
|
85 |
|
% |
Rated input voltage, rated load |
Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output voltage range |
14.7 |
15 |
15.3 |
Vdc |
|
Output current range |
0 |
|
4 |
A |
|
Voltage Regulation |
|
|
±2 |
% |
|
Load Regulation |
|
|
±2 |
% |
|
Ripple & noise |
|
|
150 |
mVp-p |
Rated input,full load, 20 MHz bandwidth |
ON/OFF rise time |
|
|
±5 |
% |
|
Output voltage overshoot |
|
|
±5 |
% |
|
Output Capacitance |
|
2200 |
|
μF |
|
Temperature coefficient |
|
±0.02 |
|
%/℃ |
|
Turn ON defer |
|
3 |
|
S |
|
Output risetime |
|
20 |
|
mS |
|
Turn OFF keep in time |
|
10/20 |
|
mS |
|
Protection Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output over current protection |
4.5 |
|
6.5 |
A |
Hiccup |
Output over voltage protection |
16.5 |
|
19.5 |
Vdc |
|
Short – Circuit Protection |
|
|
10 |
mΩ |
Hiccup |
General Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
MTBF |
100 |
|
|
KHrs |
Rated input, full load,25℃ |
Weight |
|
200 |
|
g |
|
Environmental Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Operating temperature |
0 |
|
+55 |
℃ |
|
Storage temperature |
-40 |
|
+85 |
℃ |
|
Relative humidity |
20 |
|
90 |
% |
|
Storage humidity |
10 |
|
95 |
% |
|
Altitude |
|
|
3000 |
m |
|
Cooling-down method |
|
|
|
|
Natural cooling |
Atmospheric pressure |
70 |
|
106 |
Kpa |
|
Safety Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Isolation voltage |
Input to output |
4000 |
|
|
Vac |
5mA/1min, No arcing and breakdown |
Input to ground |
1500 |
|
|
Vac |
||
Output to ground |
500 |
|
|
Vdc |
||
Isolation resistance |
Input to output |
100 |
|
|
MΩ |
|
Input to ground |
100 |
|
|
MΩ |
|
|
Output to ground |
100 |
|
|
MΩ |
|
|
Leakage current |
|
|
0.275 |
mA |
264Vac,normal condition |
EMC Characteristics
Item |
Standards |
Conditions |
Notes |
|
CE |
EN55011 |
Class B |
Pass system test |
|
RE |
EN55022 |
Class B |
Pass system test |
|
Harmonic |
EN61000-3-2 |
C type lamps requirements |
Criterion B |
|
Voltage fluctuations and flicker |
EN61000-3-3 |
Class A equipments requirements |
Criterion B |
|
Surge |
EN61000-4-5 |
Differential mode ±2KV,common mode±4KV |
Criterion B |
|
CS |
IEC61000-4-6 |
LEVEL 2: 3V/M |
Criterion A |
|
RS |
IEC61000-4-3 |
LEVEL 2: 3V/M |
Criterion A |
|
EFT |
IEC61000-4-4 |
LEVEL 3: 2V/M |
Criterion B |
|
ESD |
Air discharge |
EN61000-4-2 |
±8KV |
Criterion B |
Contact discharge |
EN61000-4-2 |
±4KV |
Criterion B |
Notes:
Criterion A: Normal performance during and after test.
Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.
Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.
Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.
Environmental Qualification
Parameter |
Notes |
Vibration |
Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis |
Mechanical Shock |
Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction |
Cold(in operation) |
IEC60068-2-1 Ad |
Damp heat |
IEC60068-2-67 Cy |
Temperature Cycling |
-40°C to 100°C, ramp 15°C/min., 500 cycles |
Power/Thermal Cycling |
Vin = min to max, full load, 100 cycles |
Design Marginality |
Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load |
Life Test |
95% rated Vin and load, units at derating point, 1000 hours |
Solder ability |
IEC60068-2-20 |
Standards compliance
Standards |
Notes |
UL/cUL60950 |
|
EN60950 |
|
GB4943 |
|
IEC 695-2-2 |
Needle flame test, test on entire assembly, board&plastic components UL94V-0 compliant |
IEC 61000-4-2 |
|
Mechanical Outline
Length×width×heigth:101.6×50.8×28 (mm),4×2×1.1(in)
Connector designations
Input connector
Pin code |
Function |
L |
Live line |
NC |
Null |
N |
Neutral line |
Output connector
Pin code |
Function |
VO+ |
Positive output voltage |
VO+ |
Positive output voltage |
VO- |
Negative output voltage |
VO- |
Negative output voltage |
S- |
Negative remote sense |
S+ |
Positive remote sense |
