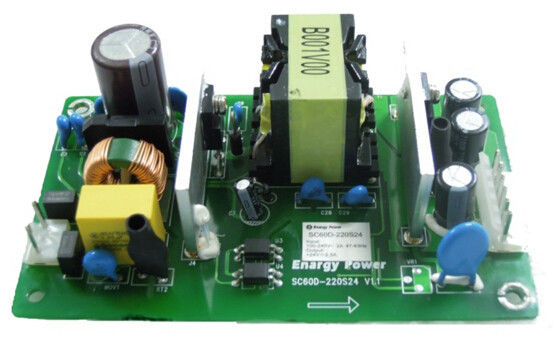

Medical Power Supply 60W Output 24VDC/2.5A SC60D-220S24A
Key Features
AC input range: 90~264Vac
Single outputs: 24V/2.5A
High efficiency: 88%
Line regulation: ±2%
Load regulation: ±2%
Low ripple&noise: ≤150mV
Frequency dithering fucntion
Short circuit protection
Output over current protection
Output over voltage protection
Over temperature protection
Standby dissipation 0.4W
EC60601-1 3rd Edition CE medical certification
Natural cool
RoHS compliant
Product Overview
This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Electric Characteristics
Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Rated input voltage |
100 |
|
240 |
Vac |
|
AC input voltage range |
90 |
|
264 |
Vac |
|
AC input frequency range |
45 |
50/60 |
63 |
Hz |
|
Max. input current |
|
|
2 |
A |
Min. input voltage, full load |
Input inrush current |
|
|
60 |
A |
Max. input voltage,25℃, first start |
Efficiency |
87 |
|
|
% |
220VAC input,full load |
Turn-on delay time |
|
|
1.5 |
S |
220VAC input,full load |
Turn-0ff hold time |
10 |
|
|
ms |
110VAC input,full load |
Dissipation |
|
|
2 |
W |
No load |
Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Output voltage range |
24.00 |
|
24.6.00 |
Vdc |
|
|
Output current range |
|
|
2.5 |
A |
220VAC input,6A for 1 second |
|
Line Regulation |
|
|
±2 |
% |
|
|
Load Regulation |
|
|
±2 |
% |
|
|
Voltage stabilizing precision |
|
|
±2 |
|
|
|
Ripple & noise |
|
|
150 |
mV |
Rated input, full load, 20 MHz bandwidth |
|
Dynamic response |
Deviation |
|
|
±5 |
% |
25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 2.5A/us |
Settling time |
|
|
400 |
uS |
To within 1% Vout nom. |
|
Turn-on rise time |
|
|
50 |
ms |
Full load,10%~90% Vout |
|
Output voltage overshoot |
|
|
±5 |
% |
|
|
Output Capacitance |
|
|
2200 |
μF |
Rated input voltage,load model:CR |
Protection Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output over voltage protection |
26 |
|
30 |
V |
Lock-out,required to restart |
Output over load protection |
6.5 |
|
8 |
A |
Hiccup |
Short – Circuit Protection |
|
|
10 |
mΩ |
Hiccup |
Over-temperature protection |
|
Lock-out,required to restart |
General Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
MTBF |
250 |
|
|
KHrs |
Rated input, full load,25℃ |
Weight |
|
|
220 |
g |
|
Environmental Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Operating temperature |
-10 |
|
+70 |
℃ |
Figure 1 |
Storage temperature |
-25 |
|
+85 |
℃ |
|
Relative humidity |
20 |
|
90 |
% |
|
Storage humidity |
10 |
|
95 |
% |
|
Altitude |
|
|
3000 |
m |
|
Cooling method |
Natural cool |
|
Safety Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Isolation voltage |
Input to output |
4000 |
|
|
Vac |
10mA/1min, No arcing and breakdown |
Isolation resistance |
10 |
|
|
MΩ |
500Vdc/1min, normal atmospheric pressure, 90% humidity |
|
EMC Characteristics
Item |
Standards |
Conditions |
Notes |
|
CE |
EN55011 FCC Docket 20780 IEC60601-1-2 |
Class B |
Pass system test |
|
RE |
EN55011 FCC Docket 20780 IEC60601-1-2 |
Class B |
Pass system test |
|
Harmonic |
EN61000-3-2 |
A type lamps requirements |
Criterion B |
|
Voltage fluctuations and flicker |
EN61000-3-3 |
Class A equipments requirements |
Criterion B |
|
Surge |
EN61000-4-5 |
Differential mode ±1KV,common mode±2KV |
Criterion B |
|
DIP |
EN61000-4-11 EN55024 |
Voltage dip to 0%Ut,10ms |
Criterion B, test at phase 0, 90, 180 and 270 |
|
Voltage dip to 40%Ut, 20ms |
||||
Voltage dip to 70%Ut,50ms |
||||
ESD |
Air discharge |
EN61000-4-2 |
±8KV |
Criterion B |
Contact discharge |
EN61000-4-2 |
±4KV |
Criterion B |
Notes:
Figure 1: Output power vs. ambient air temperature
Mechanical Outline
Length×width×heigth:127.0×76×37.0(mm), 5×2.99×1.46(in),
Connector designation:
|
1 |
2 |
3 |
4 |
5 |
6 |
J1 |
L |
NC |
N |
|
|
|
J3 |
Vout+ |
Vout+ |
Vout+ |
Vout - |
Vout - |
Vout - |
