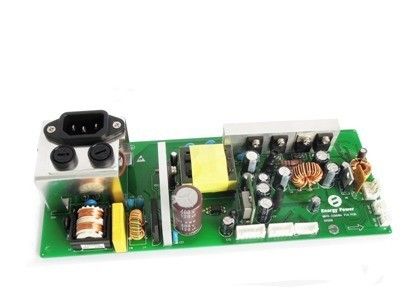

Medical Power Supply 45W Output 5V/2A ,12V/1.5A, 12V/0.5A,BAT/16.8V/0.75A  MD45-220Q16A





Key Features

AC input range:100~240Vac

Li battery input range:13-17.2Vdc

Four road outputs: 5V/2A , 12V/1.5A, 12V/0.5A,BAT/16.8V/0.75A

High efficiency:70%

Line regulation: ≤±1%

Load regulation: ≤±5%

short circuit protection

Output over current protection

Output over voltage protection

AC operation signal

Battery operation signal

Battery charging signal

Battery capacity signal

Soft On/Off function

Seamless switch between AC, battery and DC

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

The medical power input range of 100-240Vac,

Four groups of output: 5V/2A ,12V/1.5A,

B12V/0.5A,BAT/16.8V/0.75A,With output

over-voltage protection, over-current

protection protection and battery discharge

protection function



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

100



220

Vac



AC input voltage range

100



240

Vac



AC input frequency range

47



63

Hz



Max.  input current





1.5

A



Leakage current





0.5

mA



Impact of current





60

A





Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

5V

4.75

5.00

5.25

Vdc





12V

11.40

12.00

12.60

B12V

11.40



12.60

BAT

16.50



17.20

Output current range

5V

0



2.0

A





12V

0



1.5

B12V

0



0.5

BAT

0.675



0.825

Line Regulation





±1

%

Low line to high line; full load

Load Regulation





±5

%

No load to full load; nominal input

AC power-up

70





%

 220Vac input, full load

DC power-up

80





%

 14.8Vdc input, full load

Ripple & noise

5V





100



mV

Rated input, full load, 20 MHz bandwidth

12V





200

B12V





120

Turn-on rise time

5V





50

ms

Full load,10%~90% Vought

12V

Output voltage overshoot





±5

%

12V,5V Test

Output Capacitance





2200

uF



Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over voltage protection

5.5



7.0

Vdc

Latch +5V,12V, B12V

13.2



16.8

Vdc

Hiccup, auto recovery

Output current limit protection

4.0



9.5

A

Latch +5V,12V, B12V

3.0



5.5

A

Latch +5V,12V, B12V

Battery under voltage protection

12.0



12.6

Vdc



Output short circuit protection





10



Latch +5V,12V, B12V



Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-10



+40



Storage temperature

-45



+85



Relative humidity

5



90

%



Altitude

0



4500

m



Atmospheric pressure

70



106

Pa





Battery Management and signal

Parameter

Min

Typ

Max

Units

Notes

Rated battery voltage



14.8



V

Li battery

Battery capacity

2.2



4.4

AH



Charging voltage

  16.6



17.4

V



Charging current

675



825

mA



Standby current





0.7

mA

Off condition, No AC input

AC/DC Switch

0





S

5V,12V,B12V no shutdown

AC Signal









J2,Pin3,output high level voltage when AC input online

5V Signal

2



4

Vdc

J6,Pin4

B12V Signal

2



4

Vdc

J2,Pin2

BC Signal

4.0



5.25V

Vdc

J1,Pin5,P4,Pin2

A/D Signal









J2,Pin5,Pin6  A/D Signal

ON/OFF

3



5

S

J2,Pin1,Soft switch,short once on, short again off



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

250





KHrs

Rated input, full load,25℃

Weight





26(750)

Oz (g)





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

4000





Vac

5mA/1min, No arcing and breakdown

Input to ground

2000





Vac

Output to ground

500





Vdc

Isolation resistance

Input to output

10





500Vdc/1min, normal atmospheric pressure, 90% humidity



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55022

Class B

Pass system test

RE

EN55022

Class B

Pass system test

Harmonic

EN61000-3-2

C type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B



Mechanical Outline

Length×width×heigth:220×85×53(mm), 8.66×3.35×2.09(in),

RoHS Medical Power Supply 45W Output 5V / 2A , 12V / 1.5A , 12V / 0.5A , BAT / 16.8V / 0.75A  MD45-220Q16A 0

Pin Designations

Item

Pin No

Name

Function



CON1

1

L

Input voltage

2

PG

Earth

3

N

Input voltage

J1

1

+5V

Positive output voltage

2

GND

Negative output voltage

3

+12V

Positive output voltage

4

5

BC

Signal detection

6

BAT+

Positive output voltage

J2

1

ON/OFF

Soft switch

2

B12V

Signal detection

3

AC

Signal detection

4

GND

Negative output voltage

5-6

A/D interface

A/D interface

J4

1

+12V

Positive output voltage

2

GND

Negative output voltage

P4

1

BAT+

Positive output voltage

2

BC

Battery Signal detection

4

BAT-

Positive output voltage

J6

1

B12V

Positive output voltage

2

GND

Positive output voltage

3

B12V

Positive output voltage

4

+5V

Positive output voltage

5

GND

Positive output voltage

J7

1

+12V

Positive output voltage

2

GND

Positive output voltage
