2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment

تفاصيل المنتج:

Place of Origin:	Guangdong, China (Mainland)
إصدار الشهادات:	US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
Model Number:	KSAP2R4

شروط الدفع والشحن:

Minimum Order Quantity:	1000PCS
الأسعار:	Negotiable
Packaging Details:	PE bag+ white box
Payment Terms:	T/T
Supply Ability:	1M/Month
FOB:	Shenzhen Hongkong

اتصل

مفصلة وصف المنتج

تسليط الضوء:

switching power supply adapter, switching adaptor power supply

switching adaptor power supply

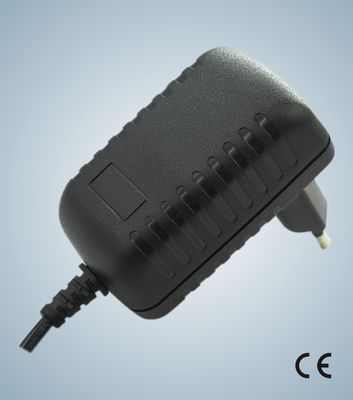

2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment
Key Features of KSAP2R4

Products highlights
●High Power Density
●EN60601 Medical Safety Approvals
●Optional Conformal Coating
●Operating temp Range ( 0℃ to 40℃)
Industrial shock and vibration(＞50G)
●MTBF 50K hours@25℃ (MIL-HDBK-217F)
●ESD: air discharging±15KV, contact discharging±8KV

Key Applications of KSAP2R4
It’s suitable for an extremely wide Range of applications, including:
●General Adapter Use medical and laboratory equipment

Input

●Input     Voltage :   90 to 264 VAC
●Frequency :          47-50/60-63hz
●Input      current : 0.15A(Max)
●Inrush    current :  60AMax. 240VAC
●Leakage current : 0.25 mA Max

Output

●Over voltage protection
●Over current protection
at 150% of lo and Auto-recovery
●Electronic short circuit protection
●Ripple&noise 20MHZ bandwidth:200mV
●Operatingtemperature 0~40℃Free convection
●Sea level Non-operating temperature -20~80℃
●Operating humidity 10-90% RH Non Condensing

Safety standards

●Information technology equipment
●EN60601-1:1990+A1:1993+A2:1995

Certificates and approvals

●Test report for EN60601

EMI Emission

●Radiation Test&Conduction Test:EN 55022/FCC Part15
●Harmonic Test : EN 61000-3-2
●Flicker Test : EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2
●RS     Test:EN 61000-4-3
●EFT    Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS      Test:EN 61000-4-6
●DIP    Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 65*36*27
