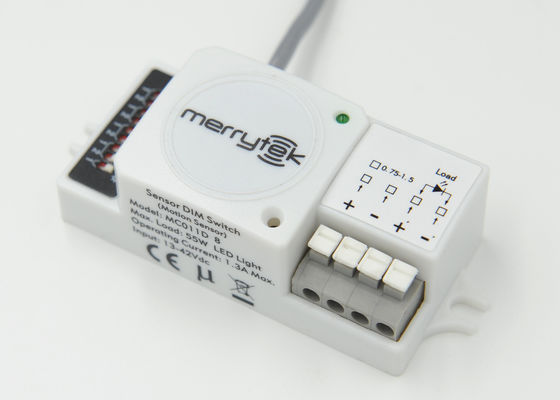

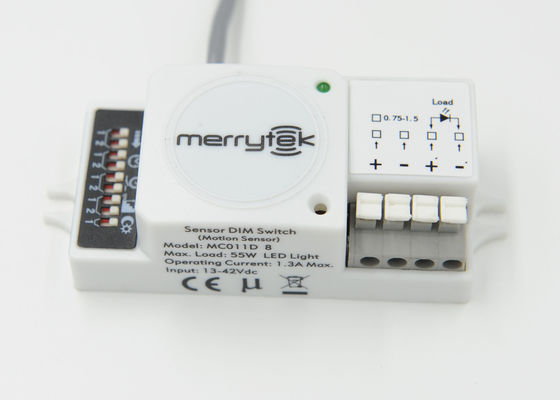

Compact Size DC Motion Sensor 5.8GHz With Constant Current Led Driver

Compact Size DC Motion Sensor 5.8GHz With Constant Current Led Driver

  • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
  • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
  • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
  • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
  • Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
Compact Size DC Motion Sensor 5.8GHz  With Constant Current Led Driver
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: Merrytek
إصدار الشهادات: CE , R&TTE
Model Number: MC011D8
شروط الدفع والشحن:
Minimum Order Quantity: 100pcs
الأسعار: Negotiation
Packaging Details: Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time: 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20,000pcs per Month
اتصل
مفصلة وصف المنتج
Product Name: Microwave motion sensor Rated load: Max.50WLED light
Operating Voltage: 13 - 42vdc Detection: Max(D×H):16m×6m
HF system: 5.8GHz ±75MHz, ISM wave band Size (L×W×H): 82x36.5x 25.5 mm(power supply part) 53x26.1x16mm(sensor part)
Approval: CE & R&TTE Operation temperature: -20℃~50℃
Function: ON-OFF 2 step dimming IP Rating: IP20
تسليط الضوء:

high frequency sensor,compact motion sensor

,

compact motion sensor



Dimming function 5.8GHz DC operation Microwave motion sensor MC011D8, CE & R&TTE



Description



  •   DC operation design
  •   Dimming function working with simple constant current led driver
  •   Hold time detection zone and daylight sensor can be set by DIP switch

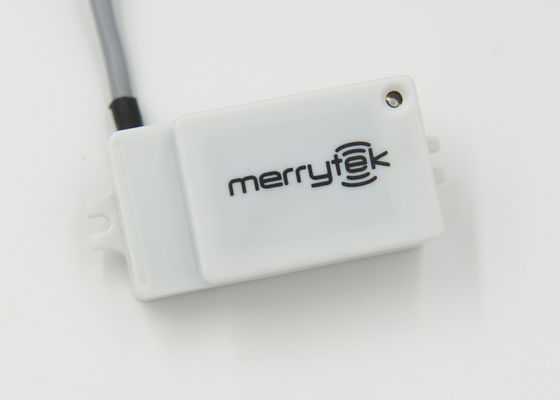

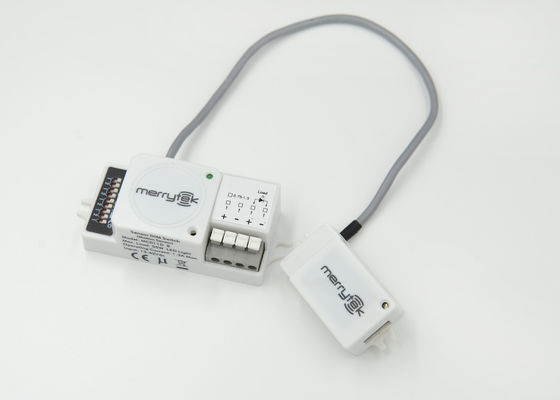

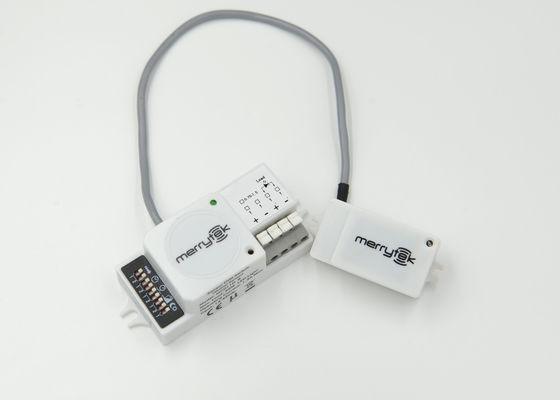

  •   Detachable design between sensor and power supply part
  •   Automatic switching based on motion and ambient light level.
  •   4-pole press-in terminal (L, N, N, L′), easy assembly.
  •   Compact size, suitable to fix within most luminaries.
  •   Wide detection area, range up to 16m in diameter.
  •   The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.



On-off function



2- Step dimming function



Specifications:





Operating voltage

13 - 42Vdc

Rated load

Max.50WLED light

Operating current

1.3A max

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃~50℃

Hold time

0s / 5min / 30min / Disable

Detection sensitivity

25%/50%/75%/100%

Dimming level

10%/20%/30% / 40%

Stand-by period

10s / 90s / 3min / 10min

Dimming mode

Gradual dimming

Daylight Sensor

30lux/Disable

Life time

50000 hours

Guaranty

5 years





Applications:



Stairwell, Corridor, Balcony, Pathway, etc.
