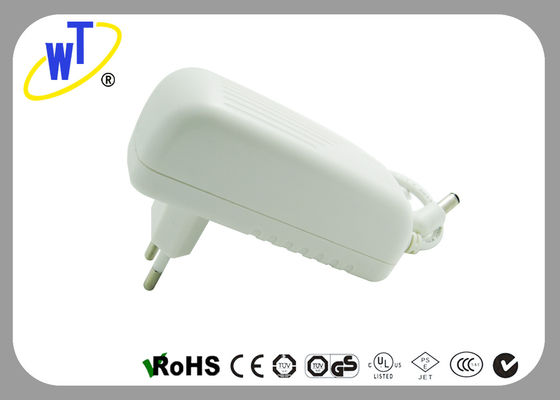

30W EU Plug Wall Mount Power Adapter for Instrumentation Equipment

30W EU Plug Wall Mount Power Adapter for Instrumentation Equipment

30W EU Plug Wall Mount Power Adapter for Instrumentation Equipment

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: WT
إصدار الشهادات: UL/CE/CCC/SAA/ROHS
Model Number: WT1202500

شروط الدفع والشحن:

Minimum Order Quantity: 500 pcs
الأسعار: negotiation
Packaging Details: PE bag+white box/PE bag without white box
Delivery Time: 20 Days
Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability: 8000 PCS/Day
ﺎﺘﺼﻟ ﺍﻶﻧ
مفصلة وصف المنتج
Approval: CE color: white



30W EU Plug Wall Mount Power Adapter for Instrumentation Equipment



Quick Details:

  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output voltage: 12VDC 2.5A
  • Power: 30W
  • Plug type: European plug, 2 pins

Description:



1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant



Warranty:

12 months

Certification:

UL/CE/CCC/SAA/ROHS

Usage:

Instrumentation equipment

Packaging:



a. PE bag+ white box

b. PE bag without white box

Place of Origin:

China(Mainland)

Brand Name:

WT

Model Numeber:

WT1202500

MOQ:

500 pcs

Delivery Time:

20 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

8000 PCS/Day



Model I/P Condition O/P Condition Efficiency R/N Max Power
Voltage Current Regulation
Unit:(V) Unit:(A) Line(%) Load(%) min% (mVp-p) W
WTxxxyyyy 100-240V
AC 50/60Hz
1.6A Max
3.3V-6.0V 3.00 2% 5% 77 38 18
6.1V-9.0V 3.00 2% 5% 83 38 27
9.1V-12.0V 2.50-3.00 2% 5% 83.5 38 30
12.1V-24.0V 1.25-2.50 2% 5% 83.5 38 30
24.1V-36.0V 0.83-1.25 2% 5% 83.5 38 30
36.1V-48.0V 0.62-0.83 2% 5% 83.5 38 30



Our Advantages:

  • Soft-start current can reduce the AC input impact efficiency
  • With short-circuit and overload protection
  • Compact size ,light weight
  • 100%full-load burning test
  • Installed with EMI filter ,minimum wave
  • Professional&experienced engineers
  • Good quality
  • Competitive price
  • Intime service
  • Free samples available
  • About 10 years experiences
  • OEM/ODM services are highly welcome
  • Flexible to meet dynamic requirements
  • High technology
  • Short Lead time
  • AC input power suitable for the world



Some Using Details:

  • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  • Connect power supply to the supplied unit.
  • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  • Power supply can only be installed indoors.
  • The power supply should be installed in a location with good airflow.

30W EU Plug Wall Mount Power Adapter for Instrumentation Equipment
