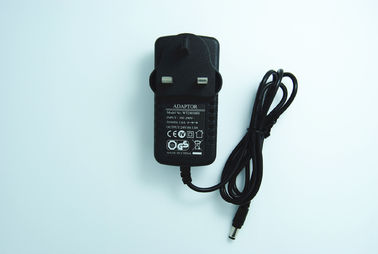

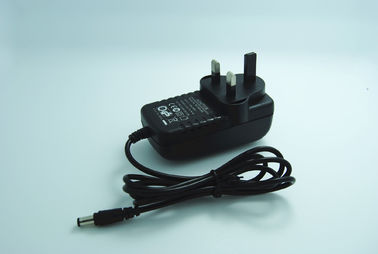

24V DC 1A 24W Output UK 3 Pins Wall Mount Power Adapter , CE / FCC / RoHS

24V DC 1A 24W Output UK 3 Pins Wall Mount Power Adapter , CE / FCC / RoHS

    • 24V DC 1A 24W Output UK 3 Pins Wall Mount Power Adapter , CE / FCC / RoHS
    • 24V DC 1A 24W Output UK 3 Pins Wall Mount Power Adapter , CE / FCC / RoHS
    • 24V DC 1A 24W Output UK 3 Pins Wall Mount Power Adapter , CE / FCC / RoHS
  • 24V DC 1A 24W Output UK 3 Pins Wall Mount Power Adapter , CE / FCC / RoHS

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: WT
    إصدار الشهادات: UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS
    Model Number: WT2401000

    شروط الدفع والشحن:

    Minimum Order Quantity: 500 pcs
    الأسعار: negotiation
    Packaging Details: PE bag+white box/PE bag without white box
    Delivery Time: 15 Days
    Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
    Supply Ability: 8000 PCS/Day
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج



    CE / FCC / RoHS 24V DC 1A 24W Output UK Type Wall Mount Power Adapter with 3 Pins



    Quick Details:

    • Input voltage: 100 to 240V AC, 50/60Hz
    • Output voltage: 24V 1A
    • Power: 24W
    • Dimension (L x W x H): 93.5*47*33mm
    • Socket type: UK plug, 3 pins
    • Application: ADSL Modem, Digital Picture Frame, Video Telephone, etc



    Description:



    1. Surface cosiness, small size and convenient carrying

    2. Low cost, high reliability and all cases are covered by ultrasonic

    3. Built-in OVP, OCP and SCP

    4. Universal input voltage:

    a. I/P voltage 100-240VAC; 50/60Hz

    b. Turn on delay time≤3s

    c. Inrush current≤30A/24V AC

    5. O/P:

    a. High accuracy and low noice

    b. Hold up time ≥20mS

    6. Operation model: CV

    7. Environment:

    a. Operation temperature: 0°C-40°C;5%-90%RH

    b. Storage temperature: -20°C-85°C;5%-95%RH

    8. Cooling: Natural cooling

    9. Energy standard: CEC/ERP

    10. Safety standard: IEC/EN60950

    11. Insulation: hi-pot, 3,000V AC 60S 10mA

    12. Leakage current: 0.25mA (maximum)

    13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

    14. RoHS compliant



    Warranty:

    1 year

    Certification:

     UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

    Usage:

    ADSL Modem, Digital Picture Frame, Video Telephone, etc

    Packaging:



    a. PE bag+ white box  84pcs/carton

    b. PE bag without white box  100pcs/carton

    Place of Origin:

    China(Mainland)

    Brand Name:

    WT

    Model Numeber:

    WT2401000

    MOQ:

    500 pcs

    Delivery Time:

    15 Days

    Payment Terms:

    T/T(30% in advance, 70% the balance must be paid before the delivery)

    Supply Ability:

    8000 PCS/Da





    Some Using Details:

    • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
    • Connect power supply to the supplied unit.
    • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
    • Power supply can only be installed indoors.
    • The power supply should be installed in a location with good airflow.



    Our Advantages:

    • Professional&experienced engineers
    • Good quality
    • Competitive price
    • Intime service
    • Free samples available
    • About 10 years experiences
    • OEM/ODM services are highly welcome
    • Flexible to meet dynamic requirements
    • High technology
    • Short Lead time
    • AC input power suitable for the world
    • Soft-start current can reduce the AC input impact efficiency
    • With short-circuit and overload protection
    • Compact size ,light weight
    • 100%full-load burning test
    • Installed with EMI filter ,minimum wave
    • Fashionable design
    • Small size
    • Low-ripple and noise
    • High-efficiency
