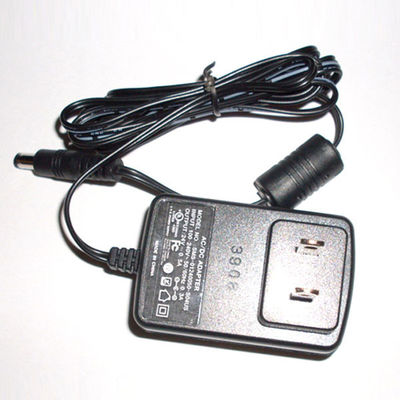

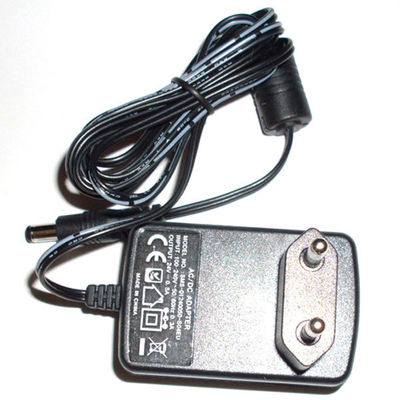

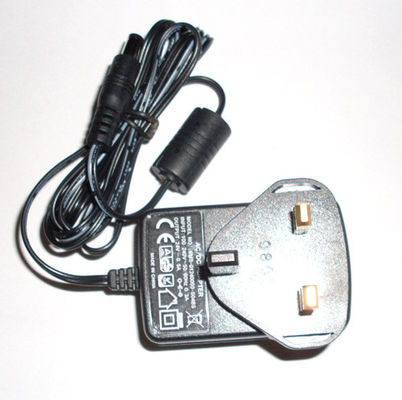

12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC

12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC

  • 12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC
  • 12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC
  • 12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC
12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: STARWELL
إصدار الشهادات: UL,CE,ROHS, FCC,GS,SAA,C-TICK
Model Number: SMS-01180200-S06US
Net Weight:: 100g
Plug:: EU, US, AU,UK available
Cable length:: 1.2 meter / 1.5 meter / 2.0 meters available
DC Jack:: 5.5 * 2.1 * 10mm / 5.5 * 2.5 * 10mm
شروط الدفع والشحن:
Minimum Order Quantity: 100pcs
الأسعار: negotiation
Packaging Details: Carton box
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Payment:: Paypal / WU / TT available
اتصل
مفصلة وصف المنتج
تسليط الضوء:

portable power adapter, european power adapter

,

european power adapter





12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC





Feartures:



> output: 12V 3A

> Weight: 100g

> Effiency: 85% minimum

> Color: Black or white

> input voltage range: 100~240VAC

> Dc cable length: 1.5 meters / 1.2 meters

> Ripple and Noise: 80mV maximum

> DC jack: 5.5*2.1*10mm / 5.5*2.5*10mm

> AC Plug:  US , EU , AU ,UK plug avaliable

> Safety protection: over load, over voltage, short ciruict, open load protection.





Specifications:



Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

0.3A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

12V 3A

Output power :

36W

Ripple and Noise :

<80Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current:

<5mA

USB connector:

5.5*2.1*10mm

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Application:

For battery charger, mobile phone, cell phone, iphone etc…





 Model List:

  36W SERIES



Model Input Voltage Power Output Voltage Output Current Plug type
SMS-01050500-S06EU 100-240VAC 25W 5V 5A EU,US,UK,AU
SMS-01050500-S06US
SMS-01050500-S06UK
SMS-01050500-S06AU
SMS-01090400-S06EU 100-240VAC 36W 9V 4A EU,US,UK,AU
SMS-01090400-S06US
SMS-01090400-S06UK
SMS-01090400-S06AU
SMS-01120300-S06EU 100-240VAC 36W 12V 3A EU,US,UK,AU
SMS-01120300-S06US
SMS-01120300-S06UK
SMS-01120300-S06AU
SMS-01180200-S06EU 100-240VAC 36W 18V 2A EU,US,UK,AU
SMS-01180200-S06US
SMS-01180200-S06UK
SMS-01180200-S06AU
SMS-01240150-S06EU 100-240VAC 18W 24V 1.5A EU,US,UK,AU
SMS-01240150-S06US
SMS-01240150-S06UK
SMS-01240150-S06AU





DRAWING:



12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC 0





12V 3A AC TO DC Power Adapter England , Wall Mount Power Supply UL FCC FCC EMC 1



EMC Standards & Safety Standards / EMC Standards





1.1.    EMC Standards



GB9254

GB17625.1

GB13837

FCC- Part15

EN 55022

EN55024

CISPR 22

EN 61000-4-4

EN 61000-3-2

EN 61000-3-3

EN 61000-4-2

EN 61000-4-3

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

EN 61000-4-11





1.2.    Safety Standards



Type

Country

Standard

Type

Country

Standard

CCC

China

GB4943

CE

Europe

EN60950-1

CCC

China

GB8898

CB

CB

IEC60950

UL/CUL

USA

UL60950-1

C-TICK

Australia

AS/NZ60950

KC

Korea

KC60950

GS/TUV

German

EN60950





INSTRUCTION:



- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their Safety.

- Children should be supervised to ensure that they do not play with the appliance.
