Place of Origin: | Shenzhen China |
اسم العلامة التجارية: | DongDaHua |
إصدار الشهادات: | CE & ROSH |
Model Number: | A-24-12CE |
Minimum Order Quantity: | 50pcs |
---|---|
Packaging Details: | As for your requirement |
Delivery Time: | As per your order quantity |
Payment Terms: | T/T & L/C |
Supply Ability: | 8000 Pieces/Day |
تسليط الضوء: | International Power Adapter, 12v DC Power Adapter,12v DC Power Adapter |
---|

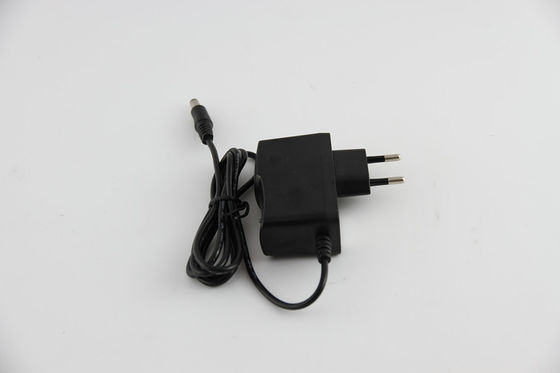

12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter
Quick detail:
Power: 12W
Input: AC 100-240V/50/60Hz
Output: DC 12V 1A
Size: 75*29*43
Warranty: 2 years
Certificate: CE&ROHS
Description:
1. Universal AC input range
2. Protection: short-circuit/overload
3. Natural air-cooled
4. LED power indicator
5. 100% full-load aged
6. Passes 5G vibration test
7. High efficiency, long life-span and high reliability
Specifications:
Product Electric Parameters |
||
Input specification |
Input voltage |
AC110V---220V |
Input frequency |
50-60Hz |
|
Input surge |
20A@120VAC 40A@230VAC |
|
Output specification |
Output voltage can be adjusted |
±10% |
Start-up time |
≦1S(input230V Io=100%) |
|
keep time |
≧20mS (input230V, Io=100%) |
|
Voltage regulation |
(Full load) ≦0.5% |
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
Over-voltage protection |
105% - 150% of the rated voltage |
|
Insulation intensity |
Input---output |
1500VAC/1min |
Input---ground |
1500VAC/1min |
|
Input---ground |
500VAC/1min |
|
Safety standards |
According with GB4943, EN60950-1 standards. |
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
|
height above sea level |
≦2000M |
|
Structure |
Size (mm) |
85(L)*43(W)*30(H) |
Cooling method |
Cooling method |
Natural cooling air convection |
Weight |
0.145KG/PCS |
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
24 Watt Full Range 220 AC To DC Power Adapters 12V DC For LCD display , AC DC Adapter
Competitive Advantage:
1.built-in EMI filter
2.100% load test
3.Full range of input voltage
4.output voltage accurate and stable
5.Output over-voltage, over-current and short-circuit protection
6.Output low ripple and noise
7.Two year warranty
8.Average working no trouble >50, 000 hours
