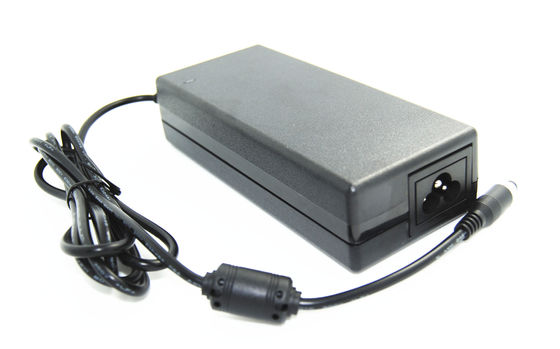

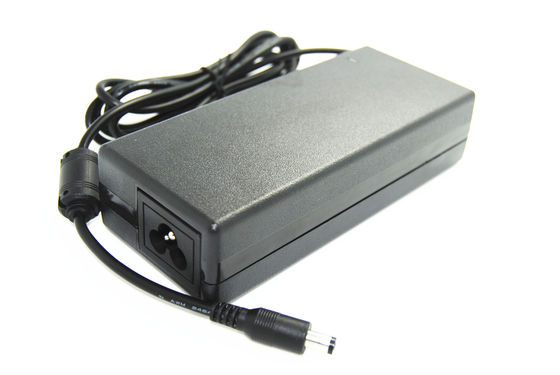

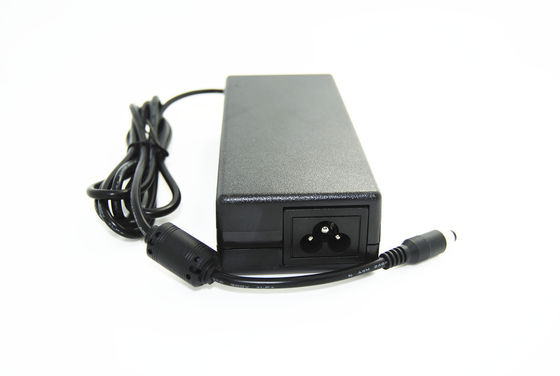

IEC / EN60950 Lenovo AC Laptop Power Adapter , 3 Pins 90W 15V DC 6A Output

IEC / EN60950 Lenovo AC Laptop Power Adapter , 3 Pins 90W 15V DC 6A Output

    • IEC / EN60950 Lenovo AC Laptop Power Adapter , 3 Pins 90W 15V DC 6A Output
    • IEC / EN60950 Lenovo AC Laptop Power Adapter , 3 Pins 90W 15V DC 6A Output
    • IEC / EN60950 Lenovo AC Laptop Power Adapter , 3 Pins 90W 15V DC 6A Output
  • IEC / EN60950 Lenovo AC Laptop Power Adapter , 3 Pins 90W 15V DC 6A Output

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: WT
    إصدار الشهادات: UL/CUL, PSE, TUV/GS,CE, CCC, SAA, ROHS
    Model Number: WT1506000

    شروط الدفع والشحن:

    Minimum Order Quantity: 500 pcs
    الأسعار: negotiation
    Packaging Details: PE bag+white box
    Delivery Time: 15 Days
    Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
    Supply Ability: 6000 PCS/Day
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج



    90W 15V DC 6A Output AC Laptop Power Adapter Fit for Lenovo Laptop , 3 Pins



    Quick details:

    • Input voltage: 100 to 240V AC, 50/60Hz
    • Output voltage: 15V 6A
    • Power: 90W
    • Dimension (L x W x H): 132*57*31mm
    • Socket type: C6, 3 pins



    Description:



    1. Surface cosiness,small size and convenient carrying

    2. Low cost,high reliability and all cases are covered by ultrasonic

    3. Built-in OVP,OCP and SCP

    4. Universal input voltage:

    • a. I/P voltage 100-240VAC;50/60Hz
    • b. Turn on delay time≤3s
    • c. Inrush current≤30A/24V AC

    5. O/P:

    • a. High accuracy and low noice
    • b. Hold up time ≥20mS

    6. Operation model: CV

    7. Environment:

    • a. Operation temperature:0°C-40°C;5%-90%RH
    • b. Storage temperature:-20°C-85°C;5%-95%RH

    8. Cooling:Natural cooling

    9. Energy standard:CEC/ERP

    10. Safety standard:IEC/EN60950

    11. Insulation: hi-pot, 3,000V AC 60S 10mA

    12. Leakage current: 0.25mA (maximum)

    13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

    14. RoHS compliant





    Warranty:

    1 year

    Certification:

    UL/CUL, PSE, TUV/GS,CE, CCC, SAA and ROHS

    Usage:

    CCTV cameras, LCD monitors, Tablet PC and LED lights

    Packaging:

    PE bag+ white box  50 pcs/carton

    Place of Origin:

    China

    Brand Name:

    WT

    Model Numeber

    WT1506000

    MOQ

    500 pcs

    Delivery Time:

    15 Days

    Payment Terms:

    T/T(30% in advance, 70% the balance must be paid before the delivery)

    Supply Ability:

    6000 PCS/Day





    Our Advantages:

    • Professional&experienced engineers
    • Good quality
    • Competitive price
    • Intime service
    • Free samples available
    • About 10 years experiences
    • OEM/ODM services are highly welcome
    • Flexible to meet dynamic requirements
    • High technology
    • Short Lead time
    • AC input power suitable for the world
    • Soft-start current can reduce the AC input impact efficiency
    • With short-circuit and overload protection
    • Compact size ,light weight
    • 100%full-load burning test
    • Installed with EMI filter ,minimum wave



    Some Using Details:

    • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
    • Connect power supply to the supplied unit.
    • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
    • Power supply can only be installed indoors.
    • The power supply should be installed in a location with good airflow.
