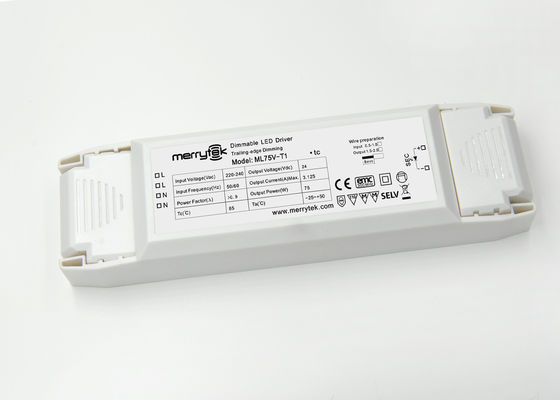

Non - flicker Dimmable 24V Constant Voltage LED Driver 75W LED Strip Light Driver

Non - flicker Dimmable 24V Constant Voltage LED Driver 75W LED Strip Light Driver

  • Non - flicker Dimmable 24V Constant Voltage LED Driver 75W  LED Strip Light Driver
Non - flicker Dimmable 24V Constant Voltage LED Driver 75W  LED Strip Light Driver
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: Merrytek
إصدار الشهادات: CE
Model Number: ML75V-T1
شروط الدفع والشحن:
Minimum Order Quantity: 100pcs
الأسعار: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability: 10,000pcs per month
اتصل
مفصلة وصف المنتج
Input Voltage: 220-240Vac Product Name: Dimmable LED driver
Dimming Mode: Trailing edge dimming Output load: 1*75W max
Working Temperature: -25℃-50℃ Output Current: 3.125A Max.
Isolation Class: Class II, SELV Output Voltage: 24Vdc
Approvals: CE Protection Class: IP20
تسليط الضوء:

led dimming driver,led dimmer driver

,

led dimmer driver



Non - flicker Dimmable 24V Constant Voltage LED Driver 75W  LED Strip Light Driver



Description:

1. Ml75V-T1 with 75w Max output

2. Special for use of trailing edge dimmer

2. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

3. Serve for constant voltage 24Vdc luminaires.

4. Output voltage:12Vdc

5, Protection: Short circuit / Over voltage / Over temperature.

6, Dimming range: 10%-100%

7. Two L,Two N,easy for synchronization function



Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

24V DC

Output Current

3.125A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE
