Single Output 20W Constant Voltage LED Driver Waterproof ，24V 12V LED Driver

تفاصيل المنتج:

Place of Origin:	China
اسم العلامة التجارية:	DongDaHua
إصدار الشهادات:	CE,RoHS

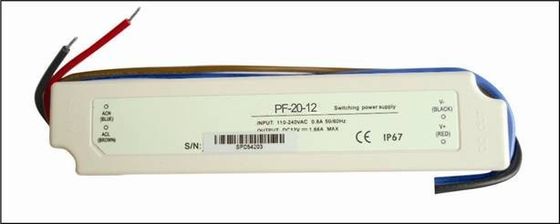

Model Number:	PF-20-12

شروط الدفع والشحن:

Minimum Order Quantity:	10
الأسعار:	/
Packaging Details:	as for your requirement
Delivery Time:	as per your order quantity
Payment Terms:	TT,paypal
Supply Ability:	4000pcs/Day

اتصل

مفصلة وصف المنتج

Product Name:	Constant Voltage LED Driver	DC output power:	20W
Input voltage range:	110-240V AC	Waterproof grade:	IP67
Input frequency range:	47Hz~63Hz	DC output voltage:	12V 24V
تسليط الضوء:	waterproof led driver, constant voltage led drivers , constant voltage led drivers

High Brightness 12V Constant Voltage LED Driver 20W Waterproof

Quick detail:

Power: 20W

Input: AC110-264V

Output: DC 12V 24V

Size: 107*50*25

Certificate: CE&ROHS

Warranty: 2 years

Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty

Descriptions:

Parameter	Model: PF-20
DC output voltage	12V±5%	24V±5%
Rated output current	1.66A	0.83A
Output current range	0-1.66A	0-0.83A
Ripple and Noise	120mVp-p
DC output power	20W	202
Efficiency	85%	85%
Input voltage range	110-240V AC
Short-circuit protection	Damage free short-circuit protection 3 times or more with automatic restoration
Overload protection	105-150% hiccup with automatic restoration
Temp.coefficient	±0.03%℃ ( 0-40℃ )
Voltage tolerance	Input-output range: 1.5KvAC
Working environmental temp.	-10℃~+40℃
Waterproof grade	IP67
Input frequency range	47Hz~63Hz
Storage temperature	-20℃~+85℃
Dimension	1393022mm
weight	0.16 kg

Features:

* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully encapsulated with IP67 level(Note.7)
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty

Brightness 12V 24V 20W Constant Voltage LED Driver / Waterproof 12v LED Driver

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Quality assurance:
