| Place of Origin: | China |
| اسم العلامة التجارية: | G-ORIENT |
| إصدار الشهادات: | ISO9001 / CE / ROHS / FCC |
| Model Number: | NHD200-5-E |
| Minimum Order Quantity: | 10pcs |
|---|---|
| الأسعار: | negotiable |
| Packaging Details: | 20pcs/12Kgs / CARTONS |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, Paypal, Western Union, L/C |
| Supply Ability: | 50,000pcs per month |
| Size: | 168*80*18mm | High efficiency: | 94% |
|---|---|---|---|
| Application: | On-board screen, Taxi LED sign | Standard: | CE / ROHS / FCC |
| Output power: | 200W | Input: | 9-36V DC |
| Output: | 5V DC / 40A | Operating temperature: | -30℃ ~ +60℃ |
| تسليط الضوء: | switching regulator power supply,switched mode power supply,switched mode power supply |
||

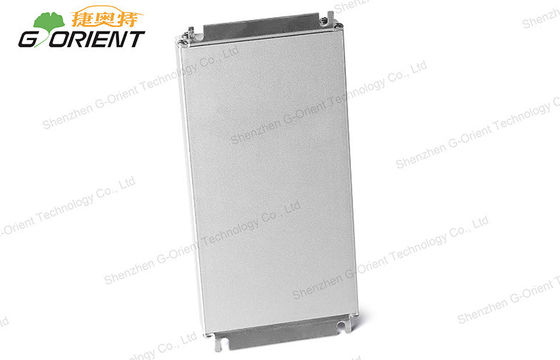

Single Output High Power Switching Power Supply Universal 200W for Car LED Display
Competitive Advantage:
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* High efficiency up to 94%
* CE / ROHS / FCC approval* Low output ripple and noise
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Specifications:
Switching power supply | NHD-200-5E | |
OUTPUT | DC Voltage | 5V |
Current Range | 0~40A | |
Rated Current | 40A | |
Rated Power | 200W | |
Ripple & Noise(max.) | <100mVp-p | |
Voltage set point accuracy | +/- 3.0%Vo max | |
Over-current protection | >120%io,hiccup | |
Line Regulation | 0.2%Vo max | |
Load Regulation | 0.2%Vo max | |
Short-circuit protection | Hiccup | |
Hold up time | >8mS | |
Overshoot and undershoot | < +/- 5.0% | |
INPUT | Voltage Range | DC9-36V |
Frequency Range | BW=20MHz | |
Efficiency(Typ.) | 94% | |
DC Current | <25A | |
Inrush Current(Typ.) | 100A at DC Cold start | |
Leakage Current | Input-Output< 0.2mA ; Input-PG:<0.3mA | |
Environment | MIBF | >2 million hrs |
Temp.Coefficient | < 0.02%/℃ | |
Storage Temperature range | -55 ~ +115℃ | |
Operaing board Temperature range | -25 ~ +65℃ | |
Safety | Safety standards | CE |
Withstand Voltage | DC40V | |
Others | Dimension | 168*80*18mm (L*W*H) |
Packing | 0.6kg; 20pcs/12Kgs | |
Features:
* Input reverse connect protection
* High efficiency 94% & small size
* Low output ripple and noise
* Through the EMC certification
* Aluminum metal shell,natural cooling
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design
