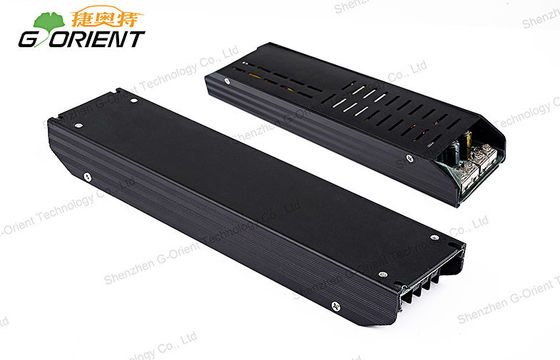

IP20 Isolated 168W Single Output Thin Power Supply Black 4.2V 40A

IP20 Isolated 168W Single Output Thin Power Supply Black 4.2V 40A

IP20 Isolated 168W Single Output Thin Power Supply Black 4.2V 40A

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: G-ORIENT
إصدار الشهادات: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-4.2-A

شروط الدفع والشحن:

Minimum Order Quantity: 10pcs
الأسعار: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
ﺎﺘﺼﻟ ﺍﻶﻧ
مفصلة وصف المنتج
Standard: CE / ROHS / FCC Output: 4.2V DC / 40A
Output power: 168W Application: LED TV
Ripple & Noise: ≤200mVp-p Input: 100-240V AC
Power factor: >0.95 Size: 212*58*29mm





IP20 Isolated 168W Single Output Thin Power Supply Black 4.2V 40A





Competitive Advantage:
* Ultra-thin 30mm
* Ultra-low start up temp.(- 30℃)
* synchonous rectification
* High efficiency up to 85%
* CE / ROHS / FCC approval
* Small size,ultra-light and easy to install
* Protections:Short circuit / Overload / Over voltage / Over temperature





Applications:
* Electrical equipment, Instrumentation;
* Digital and electronic products;
* Advisement player
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Communications and security products.





Specifications:

Switching power supply

 NHP200-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 168W

Ripple & Noise(max.)

 <250mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing







Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty





Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
