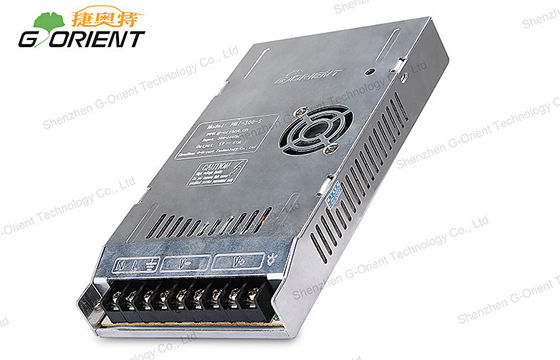

AC To DC LED Switching Power Supply 300W 5V 60A for LED Display Signs

AC To DC LED Switching Power Supply 300W 5V 60A for LED Display Signs

  • AC To DC LED Switching Power Supply 300W 5V 60A for LED Display Signs
AC To DC LED Switching Power Supply 300W 5V 60A for LED Display Signs
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: G-ORIENT
إصدار الشهادات: ISO9001 / CE / ROHS / FCC
Model Number: NHI300-5-A
شروط الدفع والشحن:
Minimum Order Quantity: 10pcs
الأسعار: negotiable
Packaging Details: 10 working days after received your payment
Delivery Time: 50,000pcs per month
Supply Ability: T/T or Paypal
اتصل
مفصلة وصف المنتج
Size: 196*110*30mm Operating temperature: -30℃ ~ +60℃
Standard: CE / ROHS / FCC Place of Origin: Shenzhen China
Case material: Metal, aluminium
تسليط الضوء:

switching regulator power supply,switched mode power supply

,

switched mode power supply



AC To DC LED Switching Power Supply 300W 5V 60A for LED Display Signs


Competitive Advantage:
* Ultra-thin 30mm
* Ultra-low start up temp.(- 40℃)
* synchonous rectification
* High efficiency up to 85%
* CE / ROHS / FCC approval
* Small size,ultra-light and easy to install
* Protections:Short circuit / Overload / Over voltage / Over temperature


Company Advantage:
* Professional R&D team
* High quality products
* Short lead time
* Standardized production process


Specifications:

Switching power supply

 NHI300-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 300W

Ripple & Noise(max.)

 <250mVp-p

Voltage ADJ.Range

 4.5~5.6V

Voltage Tolerance

 +/- 2.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 1.0%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VAC

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 83-88%

AC Current

 4A/230VAC

Inrush Current(max.)

 60A/230VAC

Leakage Current

 < 3.5mA /240VAC

 Protection

Over Load

 105 ~ 150% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 5.75~ 7.0V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 90℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

 Function

Fan on/off control(Typ.)

RTH2≧50℃ Fan on,≦45℃ Fan off

 Environment

Working Temp.

 -40 ~ +60℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -40 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.03%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 271.9K hrs min. MIL-HDBK-217F(25℃)

Dimension

 196*110*30mm (L*W*H)

Packing

 1.0kg; 20pcs/20Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage




Applications:
* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
* Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
* Industrial electrical products, machinery and electrical equipment, security system, air purifier

Features:
AC input range selectable by switch
Protections:Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* 100% full load burn-in test
* Fixed switching frequency at 90KHz
* Low cost,high reliability
* 2 years warranty
