Name: Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply
Brand: RAYTOP
SKU: ETL1200100B
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (172 reviews)

منزل المنتجات تيار متردد التبديل العاصمة التموين

Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply

تفاصيل المنتج:

Place of Origin:	Shenzhen,China
اسم العلامة التجارية:	RAYTOP
إصدار الشهادات:	CE, RoHS, FCC
Model Number:	ETL1200100B

شروط الدفع والشحن:

Minimum Order Quantity:	2K
الأسعار:	Negotiable
Packaging Details:	Color box or blister, 20 pieces per master carton.
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	50000 Pcs monthly.

اتصل

مفصلة وصف المنتج

AC Cable:	1.2M	Application:	Delta, HP, IBM, Gateway, Liteon
Approval:	CE, RoHS, FCC, UL	DC Cable:	1.2M
EMI Standards:	FCC Part 15B	Function:	Automatic
Output Power:	100W	Plug:	US
Protection:	Short Circuit, Over Voltage, Over Current	Operating Temperature:	0~40℃
تسليط الضوء:	إمدادات الطاقة الكمبيوتر المحمول العالمية, , universal laptop power supply

Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply

Quick Detail:

Place of Origin: Shenzhen, China

Brand Name: Raytop

Usage: Notebook/Netbook

AC Input: 100-240V, 50/60Hz, 1.8Amp.

Output: DC12/15/16/18/19/20/22/24V

USB Port: 5V,1.0A

Power Cord:

AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M

DC Cable: 18AWG, Copper, length: 1.2M

Condition: All new products, 100% burn-in test.

Product Type: Universal AC Adapter

Power:100W

Color: Black.

Specifications:

9 Tip Compatibility List:

6.5x4.4mm	DELL, SONY, FUJITU, SAMSUNG, PANASONIC
6.3x3.0mm	NEC, AT&T,IBM,TOSHIBA,SAMSUNG
5.5x2.5mm	HP,NEC,IBM,DELL,LG,ACER,TOSHIBA,GATEWAY,FUJITU,SHARP,COMPAQ
5.5X2.1mm	IBM,DELL,ACER,SHARP,HITACHI
5.5x1.7mm	HP,ACER,FUJITU,GATEWAY
4.8x1.7mm	HP,LG,ASUS,GATEWAY,COMPAQ
5.5x3.0mm	LG,SAMSUNG
7.4x5.0mm	HP,DELL
7.9x5.5mm	DELL,IBM-LENOVO
4.0x1.7mm	NOKIA, HP MINI
2.5X0.7mm	ASUS, NETBOOKS

Datasheet:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	1.8A
	Inrush Current	30A
Output	Rated Output Voltage	DC12-24V
	Output Voltage	DC12/15/16/18/19/20/22/24V
	Rated Output Current	4.0A
	USB Port	5V,1.0A
	Rated Power	100W
	Ripple and Noise	100mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC.
Warranty	2 Years

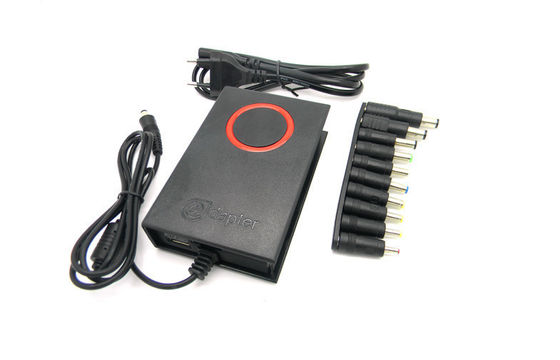

Contents	1Adapter + 1AC Cable+1DC Cable +11 Connectors

Applications:

External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on simultaneously when using your laptops.

Competitive Advantage:

-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
