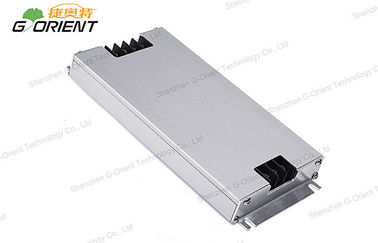

168 Watt Single Output Switching Power Supply natural cooling for Advertising Display

168 Watt Single Output Switching Power Supply natural cooling for Advertising Display

168 Watt Single Output Switching Power Supply natural cooling for Advertising Display

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: G-ORIENT
إصدار الشهادات: ISO9001 / CE / ROHS / FCC
Model Number: NHD200-4.2-A

شروط الدفع والشحن:

Minimum Order Quantity: 10pcs
الأسعار: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or Paypal
Supply Ability: 50,000pcs per month
ﺎﺘﺼﻟ ﺍﻶﻧ
مفصلة وصف المنتج
Application: On-board screen, Taxi LED sign Input: 9-36V DC
Standard: CE / ROHS / FCC Size: 168*100*18mm
Output power: 168W Output: 4.2V DC / 40A





168 Watt Single Output Switching Power Supply natural cooling for Advertising Display





Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty





Specifications:

Switching power supply

 NHD200-4.2-E

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 168W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -30 ~ +75℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 168*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.





Competitive Advantage:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94%,high reliability

* Small size,ultra-thin 18mm

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty





Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process

* Competitive price
