Place of Origin: | China |
اسم العلامة التجارية: | G-ORIENT |
إصدار الشهادات: | ISO9001 / CE / ROHS / FCC |
Model Number: | NID150-5-A |
Minimum Order Quantity: | 10pcs |
---|---|
الأسعار: | negotiable |
Packaging Details: | 20pcs/16Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Product Name: | Switch Power Supply | Output power: | 150W |
---|---|---|---|
Output: | 5V DC / 30A | Input: | 36-72V DC |
Case material: | Metal, aluminium | Size: | 152*80*18mm |
IP Grade: | IP20 | Application: | On-board screen, Taxi LED sign |
تسليط الضوء: | switching power supply,single output switching power supply,single output switching power supply |

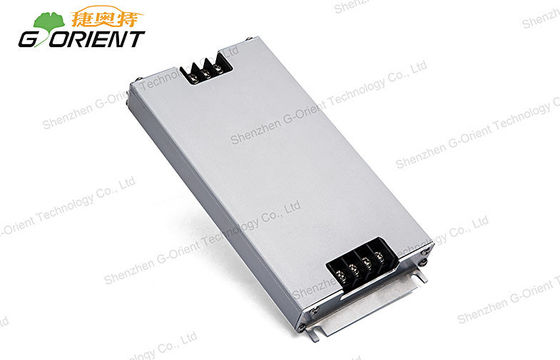

150W 5V / 30A Switch Power Supply for Vehicle / Bus / Car LED Display Board
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use
Competitive Advantage:
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* The two level output over voltage protection
* CE / ROHS / FCC approval
Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
* Competitive price
* Technical support
* OEM / ODM available
Features:
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Input reverse connect protection
* High efficiency 91% & small size
* Low output ripple and noise
* Aluminum metal shell,natural cooling
* Through the EMC certification
* 2 years warranty
* CE RoHS FCC approved
Specifications:
Switching power supply |
NID-150-5-A |
|
OUTPUT |
DC Voltage |
5V |
Current Range |
0~30A |
|
Rated Current |
30A |
|
Rated Power |
150W |
|
Ripple & Noise(max.) |
<100mVp-p |
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
Over-current protection |
>120%io,hiccup |
|
Line Regulation |
0.2%Vo max |
|
Load Regulation |
0.2%Vo max |
|
Short-circuit protection |
Hiccup |
|
Hold up time |
>8mS |
|
Overshoot and undershoot |
< +/- 5.0% |
|
INPUT |
Voltage Range |
DC36-72V |
Frequency Range |
BW=20MHz |
|
Efficiency(Typ.) |
91% |
|
DC Current |
<2.9A |
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
Environment |
MIBF |
>2 million hrs |
Temp.Coefficient |
< 0.02%/℃ |
|
Storage Temperature range |
-55 ~ +115℃ |
|
Operaing board Temperature range |
-30 ~ +75℃ |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
DC40V |
|
Others |
Dimension |
152*80*18mm (L*W*H) |
Packing |
0.6kg; 20pcs/12Kgs |
