Place of Origin: | China |
اسم العلامة التجارية: | G-ORIENT |
إصدار الشهادات: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHD100-5-A |
Minimum Order Quantity: | 10pcs |
---|---|
الأسعار: | negotiable |
Packaging Details: | 30pcs/15Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Product Name: | Switch power supply | Output power: | 100W |
---|---|---|---|
Input: | 9-36V DC | Output: | 5V DC / 20A |
Size: | 120*100*18mm | High efficiency: | 94% |
تسليط الضوء: | high power switching power supply,single output switching power supply,single output switching power supply |

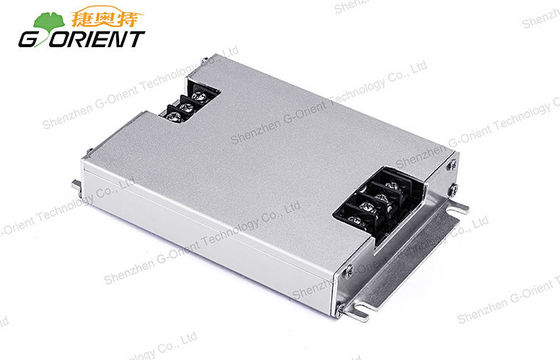

Bus LED Signs IP 20 Switch Power Supply Various Range From 84W to 200W
Features:
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Input reverse connect protection
* High efficiency 94% & small size
* Low output ripple and noise
* Aluminum metal shell,natural cooling
* Through the EMC certification
* 2 years warranty
Applications:
1. LED display board
2. Bus LED signs
3. Car LED dispaly
4. New energy products
5. LED electronic signs
6. Car audio
7. Other energy-saving appliances
Specifications:
Switching power supply |
NHD100-5-A |
|
OUTPUT |
DC Voltage |
5V |
Current Range |
0~20A |
|
Rated Current |
20A |
|
Rated Power |
100W |
|
Ripple & Noise(max.) |
<100mVp-p |
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
Over-current protection |
>120%io,hiccup |
|
Line Regulation |
0.2%Vo max |
|
Load Regulation |
0.2%Vo max |
|
Short-circuit protection |
Hiccup |
|
Hold up time |
>8mS |
|
Overshoot and undershoot |
< +/- 5.0% |
|
INPUT |
Voltage Range |
DC9-36V |
Frequency Range |
BW=20MHz |
|
Efficiency(Typ.) |
94% |
|
DC Current |
<2.9A |
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
Environment |
MIBF |
>2 million hrs |
Temp.Coefficient |
< 0.02%/℃ |
|
Storage Temperature range |
-55 ~ +115℃ |
|
Operaing board Temperature range |
-30 ~ +75℃ |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
DC40V |
|
Others |
Dimension |
120*80*18mm (L*W*H) |
Packing |
0.5kg; 30pcs/15Kgs |
Competitive Advantage:
* Ultra-thin 18mm
* High efficiency up to 94%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
* Competitive price
* Technical support
