GAOXIN المجمع الصناعي، قوانغمينغ منطقة جديدة، مدينة شنتشن بمقاطعة قوانغدونغ، والصين | Angelwang66@126.com |
Place of Origin: | China |
اسم العلامة التجارية: | G-ORIENT |
إصدار الشهادات: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHP200-5-A |
Minimum Order Quantity: | 10pcs |
---|---|
الأسعار: | negotiable |
Packaging Details: | 20pcs/16Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Output: | 5V DC / 40A | Output power: | 200W |
---|---|---|---|
Size: | 212*58*29mm | Power factor: | >0.95 |
High efficiency: | 90% | Input: | 100-240V AC |
تسليط الضوء: | 5v 12v power supply,constant voltage power supply,constant voltage power supply |

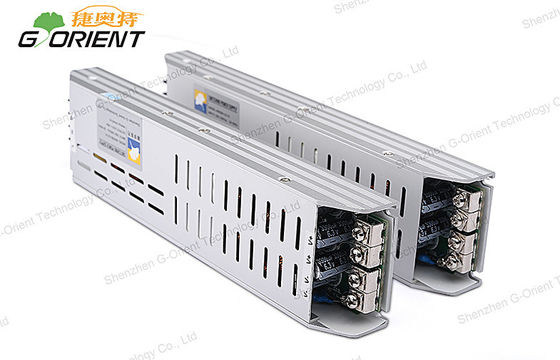

High PFC Industrial Power Supply 200W 5V / 40A with CE RoHS Approved
Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty
Company Advantage:
* Professional R&D team
* Standardized production process
* Best after sale service
* High quality products
* Short lead time
* Cheap wholesale price
Specifications:
Switching power supply |
NHP200-5-A |
|
OUTPUT |
DC Voltage |
5V |
Current Range |
0~40A |
|
Rated Current |
40A |
|
Rated Power |
200W |
|
Ripple & Noise(max.) |
<200mVp-p |
|
Regulation |
≦+/-3% |
|
Leakage current |
≦3.5mA |
|
INPUT |
Voltage Range |
100-240V AC |
Frequency Range |
47-63Hz |
|
Efficiency(Typ.) |
90% |
|
Environment |
Storage Temperature |
-40 ~ +85℃ |
Operaing Temperature |
-40 ~ +80℃ |
|
Relative Humidity |
10%-95% |
|
Cooling |
Natural convection |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
Input-output withstand vol. |
3000Vac/10mA/1min |
Input-FG withstand vol. |
1500Vac/10mA/1min |
|
Output-FG withstand vol. |
500Vac/10mA/1min |
|
Others |
Dimension |
212*58*29mm (L*W*H) |
Packing |
|
Competitive Advantage:
* Ultra-thin 29mm
* High efficiency up to 90%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* Synchronous rectification+PFC
* Ultra-low start up temperature-40℃
* CE / ROHS / FCC approval
Applications:
* Digital and electronic products;
* Advisement player
* Electrical equipment, Instrumentation;
* Communications and security products.
* LED display,LCD TV, LED TV
* Display screen,LED video wall
