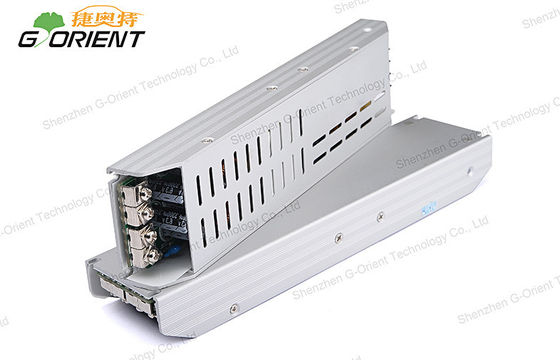

IP20 Isolated Led Display Power Supply 2 Years Warranty For Advisement player

IP20 Isolated Led Display Power Supply 2 Years Warranty For Advisement player

    • IP20 Isolated Led Display Power Supply 2 Years Warranty For Advisement player
  • IP20 Isolated Led Display Power Supply 2 Years Warranty For Advisement player

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: G-ORIENT
    إصدار الشهادات: ISO9001 / CE / ROHS / FCC
    Model Number: NHP300-5-A

    شروط الدفع والشحن:

    Minimum Order Quantity: 10pcs
    الأسعار: negotiable
    Packaging Details: 20pcs/16Kgs / CARTONS
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T, Paypal, L/C, Western Union
    Supply Ability: 50,000pcs per month
    اتصل
    مفصلة وصف المنتج
    High efficiency: 90% Input: 100-240V AC
    Output: 5V DC / 60A Power factor: >0.95
    Output Power: 300W Standard: CE/ ROHS/ FCC
    تسليط الضوء:

    constant voltage power supply

    ,

    indoor power supply





    IP20 Isolated Led Display Power Supply 2 Years Warranty For Advisement player



    Applications:

    1. Electrical equipment, Instrumentation;

    2. Digital and electronic products;

    3. Advisement player

    4. LED display,LCD TV, LED TV

    5. Display screen,LED video wall

    6. Communications and security products.





    Competitive Advantage:

    * Ultra-thin 29mm

    * High efficiency up to 90%

    * Low output ripple and noise

    * Output over-current,short-circuit,over-load,over-voltage protection

    * Synchronous rectification+PFC

    * Ultra-low start up temperature-40℃

    * CE / ROHS / FCC approval





    Specifications:

    Switching power supply

     NHP300-5-A

     OUTPUT

    DC Voltage

     5V

    Current Range

     0~60A

    Rated Current

     60A

    Rated Power

     300W

    Ripple & Noise(max.)

     <200mVp-p

    Regulation

     ≦+/-3%

    Leakage current

     ≦3.5mA

     INPUT

    Voltage Range

     100-240V AC

    Frequency Range

     47-63Hz

    Efficiency(Typ.)

     90%

     Environment

    Storage Temperature

     -40 ~ +85℃

    Operaing Temperature

     -40 ~ +80℃

    Relative Humidity

     10%-95%

    Cooling

     Natural convection

     Safety

    Safety standards

     CE

     Withstand Voltage

    Input-output withstand vol.

     3000Vac/10mA/1min

    Input-FG withstand vol.

     1500Vac/10mA/1min

    Output-FG withstand vol.

     500Vac/10mA/1min

     Others

    Dimension

     212*58*29mm (L*W*H)





    Features:

    * Synchronous rectification,high power factor>0.95

    * High efficiency up to 90%

    * Low output ripple and noise,high reliability

    * With over-current/over-voltage/short-circuit/over-power protection

    * Ultra-low start up temperature -40℃

    * 2 years warranty





    Company Advantage:

    * High quality products

    * Standardized production process

    * Best after sale service

    * Short lead time

    * Professional R&D team

    * Cheap wholesale price
