GAOXIN المجمع الصناعي، قوانغمينغ منطقة جديدة، مدينة شنتشن بمقاطعة قوانغدونغ، والصين | Angelwang66@126.com |
Place of Origin: | China |
اسم العلامة التجارية: | Champion |
إصدار الشهادات: | CE ; UL |
Model Number: | GFM3000 |
Minimum Order Quantity: | 50 pcs |
---|---|
الأسعار: | negotiation |
Packaging Details: | Carton box |
Delivery Time: | 25 days |
Payment Terms: | 30% in advance, T/T |
Supply Ability: | 50,000 pieces per month |
Model Name: | GFM3000 | Size: | 710*350*345 mm |
---|---|---|---|
Voltage: | 2V | Terminal: | M8 |
Capacity: | 3000AH | Color: | Black |
Weight: | 180kg | Application: | UPS,Inverter,Solar system |
تسليط الضوء: | 2v sealed lead acid battery,rechargeable deep cycle battery,rechargeable deep cycle battery |
2V 3000ah off gird system battery Solar power AGM battery 2v lead acid battery
Description:

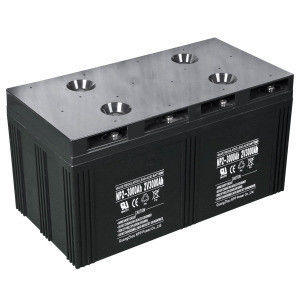

Champion® 2V Stationary AGM Batteries
Champion® 2V series are valve-regulated, non-spillable types constructed with an absorbent glass mat (AGM ) with pasted flat lead-calcium alloy plates. They are designed to provide long, reliable service life without maintenance.
Place of Origin: |
China (Mainland)
|
Brand Name: |
CHAMPION
|
Model Number: |
GFM3000
|
Usage: |
ups /solar panel/photovoltanic system
|
Voltage: |
2v
|
Sealed Type: |
Sealed
|
Maintenance Type: |
Free
|
Size: |
712*353*341*382mm
|
Weight: |
180kgs
|
Nominal Capacity: |
3000AH
|
Warranty: |
3 years
|
color: |
orange/blue/or as per customer's option
|
certification: |
ISO, CE, MSDS
|
-Sealed and maintenance free operation
-Non-Spillable construction design.
-ABS Containers and Covers (UL94HB), UL94V-0 optional.
-Safety valve installation for explosion proof.
-High quality and high reliability.
- Exceptional deep discharge recovery performance.
- Low self discharge characteristic.
-Flexibility design for multiple install positions.
Applications:
Specifications:
Normal Voltage:-----2Volt Nominal Plates Extra Heavy Duty
Design Life: 15 years@25C
Plates: Flat Pasted
Separator: AGM ( Absorbent Glass Mat )
Container /Cover---ABS
Plate Alloy---Virgin Pure Lead /1.6% Tin
Terminal---Copper Insert +Threaded Post
Charge Voltage---Cycle 2.35VPC: Float 2.25 to 2.30Vpc@20C
Specific Gravity---1.280
Electrolyte---Acid
Operating Temperature: -25 to +55(However we recommend that the batteries be operated in the temperature range of 20 to 30 C, to obtain full life and optimum performance.)
Model |
Voltage |
Capacity |
Dimension(mm) |
Terminal |
Weight |
|||
(V) |
(Ah) |
L |
W |
H |
TH |
Type |
(Kg±3%) |
|
GFM100 |
2 |
100 |
171 |
72 |
205 |
210 |
F13 |
5.6 |
GFM150 |
2 |
150 |
171 |
102 |
206 |
221 |
F13 |
8 |
GFM200 |
2 |
200 |
171 |
111 |
330 |
364 |
F12 |
12.8 |
GFM250 |
2 |
250 |
171 |
111 |
330 |
364 |
F12 |
13 |
GFM300 |
2 |
300 |
171 |
151 |
330 |
364 |
F12 |
18 |
GFM350 |
2 |
350 |
171 |
151 |
330 |
364 |
F12 |
20 |
GFM400 |
2 |
400 |
210 |
175 |
330 |
367 |
F12 |
25 |
GFM500 |
2 |
500 |
241 |
175 |
330 |
365 |
F12 |
30 |
GFM600 |
2 |
600 |
302 |
175 |
330 |
367 |
F12 |
36 |
GFM630 |
2 |
630 |
302 |
175 |
330 |
367 |
F12 |
37 |
GFM650 |
2 |
650 |
302 |
175 |
330 |
367 |
F12 |
38 |
GFM800 |
2 |
800 |
410 |
175 |
330 |
367 |
F12 |
50 |
GFM1000 |
2 |
1000 |
475 |
175 |
330 |
367 |
F12 |
60 |
GFM1250 |
2 |
1250 |
475 |
175 |
330 |
367 |
F12 |
60 |
GFM1500 |
2 |
1500 |
400 |
350 |
345 |
382 |
F12 |
93 |
GFM1875 |
2 |
1875 |
400 |
350 |
345 |
382 |
F12 |
95 |
GFM2000 |
2 |
2000 |
490 |
350 |
345 |
382 |
F12 |
120 |
GFM2500 |
2 |
2500 |
490 |
350 |
345 |
382 |
F12 |
120 |
GFM3000 |
2 |
3000 |
710 |
350 |
345 |
382 |
F12 |
180
|
Competitive Advantage:
