EMC Shielded Enclosure Filter , High Performance Power Line Filters

تفاصيل المنتج:

Place of Origin:	China
اسم العلامة التجارية:	PIONEER
إصدار الشهادات:	CE/ROHS
Model Number:	PESF-H601C1-1.5

شروط الدفع والشحن:

Minimum Order Quantity:	1pcs
الأسعار:	negotiation
Packaging Details:	5-layer corrugated packaging for sample;wooden packaging for more order
Delivery Time:	1-15 days
Payment Terms:	T/T ,L/C,Western Union,PayPal
Supply Ability:	3000pcs per month

اتصل

مفصلة وصف المنتج

تسليط الضوء:

emi noise filter,power line filter

power line filter

EMC Shielded Enclosure Filter , High Performance Power Line Filters

Description

PIONEER EMC LTD specializes in the design and manufacture of EMI filters.

These series power line EMI filters are specially designed for anechoic chamber, shielded enclosure,

Electromagnetic shelter, shielded chamber and Shield Facilities.

PESF-H601C1-1.5

Rated voltage	30VDC
Rated current	1.5A
Insertion Loss:	≥100dB(10KHz～10GHz)
Leakage	low
Climatic Category	25/070/21
Accessories	Penetration tube: 1 PCS
	Washer: 1 PCS
	Nut: 1 PCS
	RF Gasket: 2 PCS
Custom design and OEM	Accepted

Power filters picture show

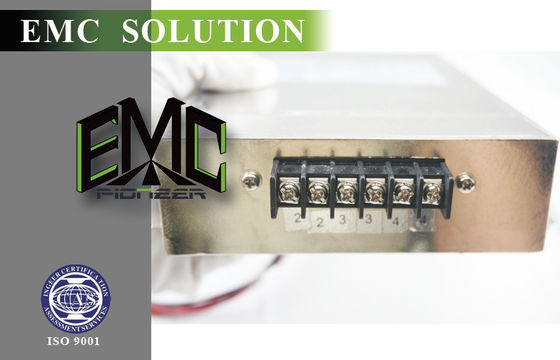

EMC Shielded Enclosure Filter , High Performance Power Line Filters 0

Mechanical Dimension

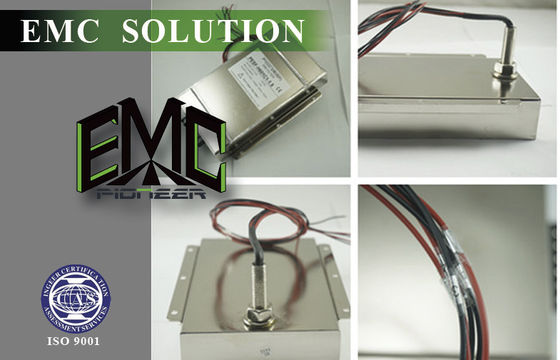

EMC Shielded Enclosure Filter , High Performance Power Line Filters 1

Installation Drawing

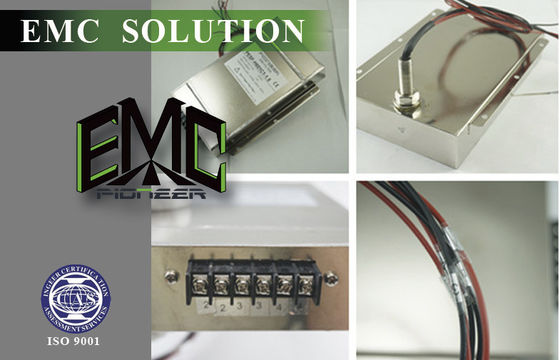

EMC Shielded Enclosure Filter , High Performance Power Line Filters 2

Shielding Performance

14Hz	60-90dB
100 kHz	98 dB
1 MHz	132 dB
5 MHz	132 dB
30 MHz	133 dB
80 MHz	126 dB
200 MHz	127 dB
400 MHz	120 dB
600 MHz	118 dB
800 MHz	126 dB
1 GHz	124 dB
10 GHz	119 dB
18 GHz	103 dB

International standards

All of products are CE certified and ROHS compliance,also meet the standards of IEC939-1,IEC939-2,

EN133200,UL1283, VDE0565-3,GB/T15287,GB/T15288 etc. to available for every country.

Applications

The general design of these filters corresponds with the attenuation request of shielded sites for EMC

testing or secure locations with TEMPEST requirements.

Faraday cages

Anechoic chambers

Reverberation chambers

Shelters

EMC applications

TEMPEST applications

These electrical structure used allows low leakage current. These filters can be used without an isolation

transformer under certain conditions.
