GAOXIN المجمع الصناعي، قوانغمينغ منطقة جديدة، مدينة شنتشن بمقاطعة قوانغدونغ، والصين | Angelwang66@126.com |
Place of Origin: | China |
اسم العلامة التجارية: | G-ORIENT |
إصدار الشهادات: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHP300-4.2-A |
Minimum Order Quantity: | 10pcs |
---|---|
الأسعار: | negotiable |
Packaging Details: | 20pcs/16Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Input: | 100-240V AC | Product Name: | AC DC Converter |
---|---|---|---|
Operating temperature: | -40℃ ~ +60℃ | Output power: | 252W |
Output: | 4.2V DC / 60A | IP Grade: | IP20 |
Power factor: | >0.95 | High efficiency: | 90% |
تسليط الضوء: | ac to dc power converter,ac to dc converter,ac to dc converter |

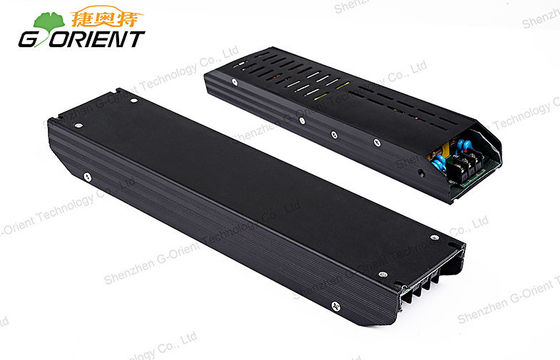

Wide Range Input 100 - 240V AC DC Converter 252 Watt for LED display
Features:
* High efficiency up to 90%
* Ultra-low start up temperature -40℃
* 2 years warranty
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Synchronous rectification,high power factor>0.95
Specifications:
Switching power supply | NHP300-4.2-A | |
OUTPUT | DC Voltage | 4.2V |
Current Range | 0~60A | |
Rated Current | 60A | |
Rated Power | 252W | |
Ripple & Noise(max.) | <200mVp-p | |
Regulation | ≦+/-3% | |
Leakage current | ≦3.5mA | |
INPUT | Voltage Range | 100-240V AC |
Frequency Range | 47-63Hz | |
Efficiency(Typ.) | 90% | |
Environment | Storage Temperature | -40 ~ +85℃ |
Operaing Temperature | -40 ~ +80℃ | |
Relative Humidity | 10%-95% | |
Cooling | Natural convection | |
Safety | Safety standards | CE |
Withstand Voltage | Input-output withstand vol. | 3000Vac/10mA/1min |
Input-FG withstand vol. | 1500Vac/10mA/1min | |
Output-FG withstand vol. | 500Vac/10mA/1min | |
Others | Dimension | 242*58*29mm (L*W*H) |
Packing |
|
Competitive Advantage:
* Ultra-low start up temperature-40℃
* Ultra-thin 29mm
* Output over-current,short-circuit,over-load,over-voltage protection
* High efficiency up to 90%
* Low output ripple and noise
* Synchronous rectification+PFC
Applications:
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Electrical equipment, Instrumentation;
* Communications and security products.
* Digital and electronic products;
* Advisement player
Company Advantage:
* Professional R&D team
* Standardized production process
* Best after sale service
* High quality products
* Short lead time
