Place of Origin: | China |
اسم العلامة التجارية: | G-ORIENT |
إصدار الشهادات: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHP200-4.2-A |
Minimum Order Quantity: | 10pcs |
---|---|
الأسعار: | negotiable |
Packaging Details: | 20pcs/16Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
High efficiency: | 90% | Application: | Indoor |
---|---|---|---|
Output power: | 168W | Case material: | Metal, aluminium |
Input: | 100-240V AC | Output: | 4.2V DC / 40A |
Power factor: | >0.95 | Size: | 212*58*29mm |
تسليط الضوء: | ac to dc power converter,ac to dc converter,ac to dc converter |

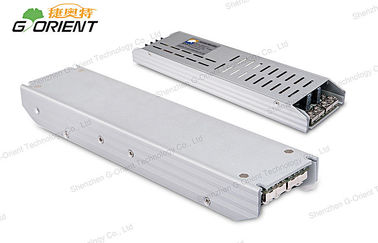

Thickness 29mmAC DC Converter 168W 4.2V 40A , ac dc car converter
Applications:
* Electrical equipment, Instrumentation;
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Digital and electronic products;
* Advisement player
* Communications and security products.
Features:
* Synchronous rectification,high power factor>0.95
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty
* High efficiency up to 90%
* Low output ripple and noise,high reliability
Specifications:
Switching power supply |
NHP200-4.2-A |
|
OUTPUT |
DC Voltage |
4.2V |
Current Range |
0~40A |
|
Rated Current |
40A |
|
Rated Power |
168W |
|
Ripple & Noise(max.) |
<200mVp-p |
|
Regulation |
≦+/-3% |
|
Leakage current |
≦3.5mA |
|
INPUT |
Voltage Range |
100-240V AC |
Frequency Range |
47-63Hz |
|
Efficiency(Typ.) |
90% |
|
Environment |
Storage Temperature |
-40 ~ +85℃ |
Operaing Temperature |
-40 ~ +80℃ |
|
Relative Humidity |
10%-95% |
|
Cooling |
Natural convection |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
Input-output withstand vol. |
3000Vac/10mA/1min |
Input-FG withstand vol. |
1500Vac/10mA/1min |
|
Output-FG withstand vol. |
500Vac/10mA/1min |
|
Others |
Dimension |
212*58*29mm (L*W*H) |
Packing |
|
|
Note |
|
|
|
Competitive Advantage:
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Small size,ultra-light and easy to install
* Ultra-low start up temp.(- 30℃)
* synchonous rectification
* CE / ROHS / FCC approval
* Ultra-thin 30mm
* High efficiency up to 85%
