Place of Origin: | China |
اسم العلامة التجارية: | ODM & OEM |
إصدار الشهادات: | CE & RoHs |
Model Number: | S-200 |
Minimum Order Quantity: | 2000 PCS |
---|---|
الأسعار: | Negotiable |
Packaging Details: | carton |
Delivery Time: | 25 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 PCS Per Month |
CPU: | ALI3329 | SDRAM: | 1X16MBit |
---|---|---|---|
Flash: | 1MB | Tuner: | AV2028 |
Biss: | Support | TKGS: | Support |
تسليط الضوء: | wifi satellite receiver,3g satellite receiver,3g satellite receiver |

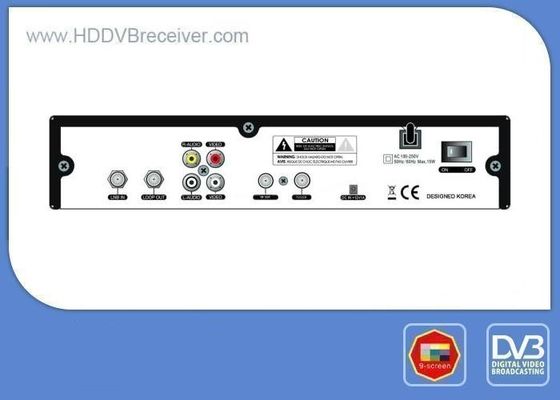

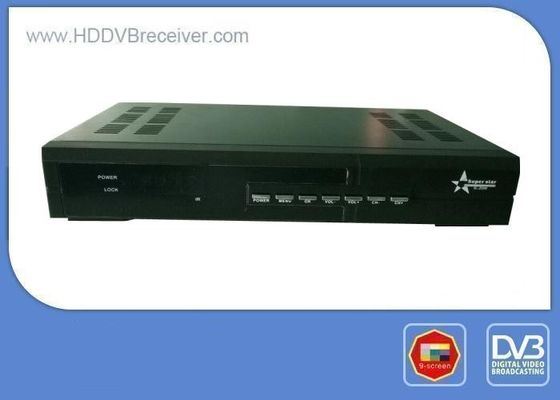

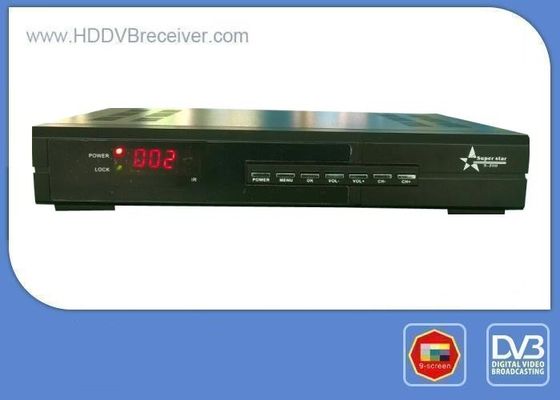

ALI3329 Digital Satellite Receiver With crocodile Clip Cable Support AC DC Power In, BISS, TKGS, Dongle
Specifications:
TUNER : AV2028
Input Frequency : 950 to 2150 Mhz
Input Level : -65 to -25
LNB Supply : 13V / 18 V / OFF, max 400 mA
Demodulation Type: QPSK
Symbol Rate : 4 ~ < 45 MS/s
AUDIO/VIDEO PROCESSING
Sudio Standard : ISO/IEC 13818-3
Audio Channel : Mute, Left, Right and Stereo
Audio Decoding : MPEG-1 & MPEG-2 layer I and II
Video Standard : ISO/IEC 13818-2, MPEG-2 MP@ML
Aspect Ratio : 4:3
Video Resolution : 720 x 576 (PAL), 720 x 480 (NTSC)
Video Format : 4:3
Features:
1. Fully DVB-S/MPEG2 compliant
2. Supports DiSEqC 1.0/1.2
3. 0/22 Khz Tone
4. SCPC/MCPC Receivable from C/KU band satellite
5. 3 Operation Modes (Digital TV, Digital Radio, Favorite)
6. 950-2150 Mhz Input Frequency
7. Wide Symbol Rate 4-45 Mbps
8. MPEG-2 Main Profile at main level
9. Easy Graphic Menu Interface
10. 5 OSD Color Style
11. 16/256 colors on screen display (OSD) supported
12. PAL-NTSC auto-conversion
13. Up to 9 picture on screen
14. Software upgrade via RS-232 serial port
15. The Warranty of our dvb-s receiver is:12 monthes
16. Our dvb-s receiver has passed CE and ROHS
