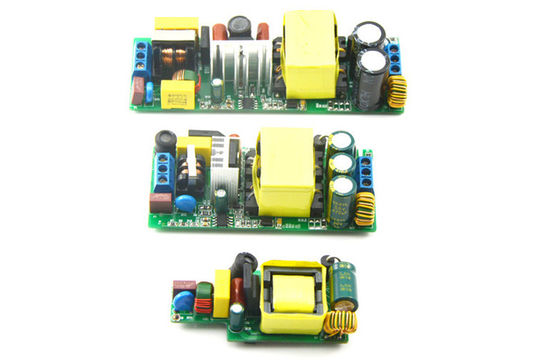

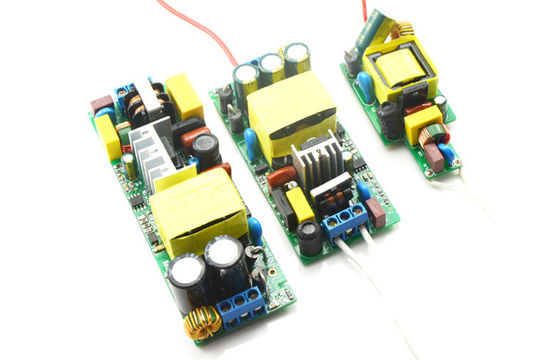

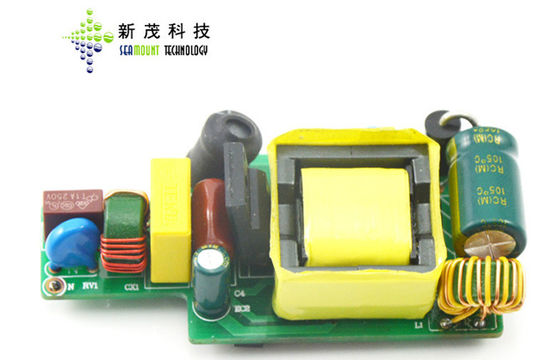

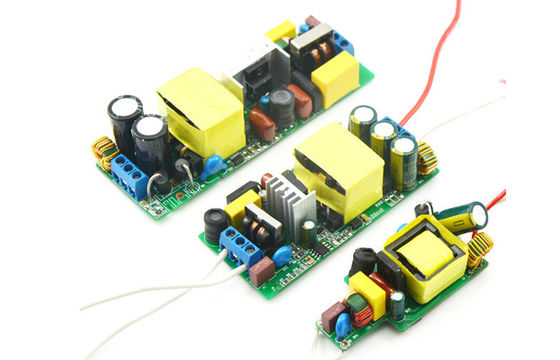

Constant Current LED Lighting Driver AC 220V

Constant Current LED Lighting Driver AC 220V

  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
  • Constant Current LED Lighting Driver AC 220V
Constant Current LED Lighting Driver AC 220V
تفاصيل المنتج:
Place of Origin: CHINA
اسم العلامة التجارية: EMITTRON
إصدار الشهادات: CE,ROHS
Model Number: SMDA-2030-PF
شروط الدفع والشحن:
Minimum Order Quantity: 100pcs/Carton
Packaging Details: 1250*240*240mm 8kg 25pcs/ctn
Delivery Time: 5-10 days
Payment Terms: T/T,Paypal,Western Union,L/C
Supply Ability: 100000PCS/Month
اتصل
مفصلة وصف المنتج
Features: high PF, high efficiency, High voltage start, Isolated power supply Application: LED Lighting
certification: CE, RoHS Input frequency: 47Hz - 63Hz
Input voltage: 85V - 265V AC Maximum current: 1.2A
Output power: 20W - 30W Output voltage: 20V - 45V DC
Power factor: 0.95 Product Name: Constant Current LED Driver, LED Lighting Driver
تسليط الضوء:

led constant current driver,constant current power supply

,

constant current power supply

CE RoHS 1.2A Constant Current LED Lighting Driver AC 220V With High Voltage Start



20-30W isolation type constant current LED driver





  • Part Number: SMDA-2030-PF
  • Brand Name:SEAMOUNT
  • Product description:20-30W isolation type constant current LED driver power supply
  • Output power: 20-30W
  • Input voltage: 85 ~ 265V AC
  • Input frequency: 47 Hz ~ 63 Hz
  • Power factor>0.95
  • Output voltage: 20 ~ 45 VDC
  • Maximum current: 1.2A
  • Maximum output power: 30 w
  • Conversion efficiency> 89%
  • Constant current precision:±3%
  • Ripple and noise (P - P) ≤5%
  • Temperature coefficient: ±0.2%/℃


Product features:



  • High voltage start, no delay, no flicker
  • Low ripple, start quickly, high PF, high efficiency
  • Over temperature protection, over-voltage protection, overload protection, short circuit protection
  • Isolated power supply, safe and reliable, Two years warranty,
  • CE, RoHS certification


Electrical properties:



Input voltage:

85 ~ 265V AC

Input frequency:

47 Hz ~ 63 Hz

Power factor

>0.95

Output voltage:

20 ~ 45 VDC

Maximum current:

1.2A

Maximum output power:

30 w

Conversion efficiency

> 89%

Constant current precision:

±3%

Ripple and noise (P - P)

≤5%

Temperature coefficient:

±0.2%/℃



Protection features:



  • Output no-load voltage≤60V
  • Short circuit protection
  • Over temperature protection
  • Over voltage protection
  • Overload protection


Electromagnetic interference:



  • Conducted interference degree: EN55015, CLASS B
  • Radiated interference degree: EN55015, CLASS B


Environmental conditions:



  • Working temperature: 10 ℃ ~ + 45 ℃ typical values (25 ℃)
  • Storage temperature: -20℃~+70℃ typical values (25 ℃)
  • Relative humidity: 5~95%
  • Atmospheric pressure: 70-106 KPa

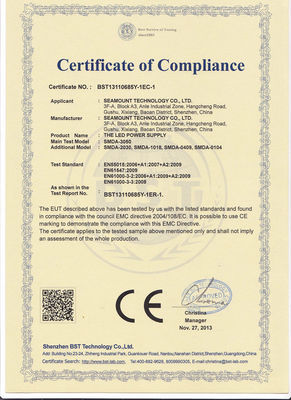

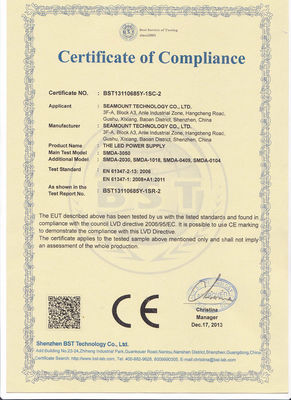

Certification&life:



  • EMC:BST13110685Y-1EC-1
  • LVD:BST13110685Y-1SC-2

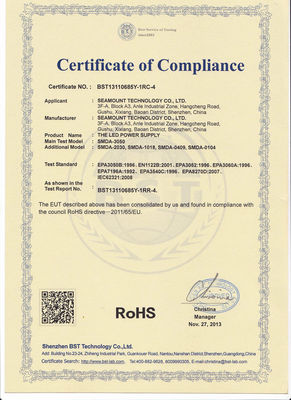

  • RoHS:BST13110685Y-1RC-4
  • Life: 50,000 hours long life design


Product packaging/size /weight/ quantity:



  • Driver size/weight: 85mm*39mm*23mm

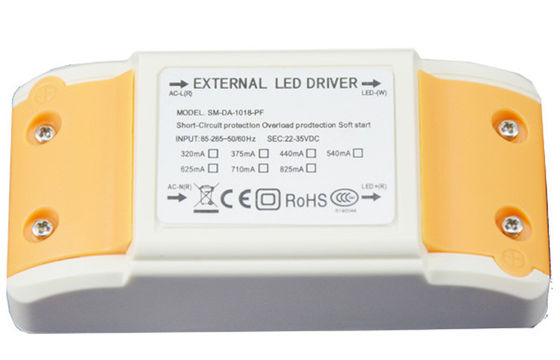

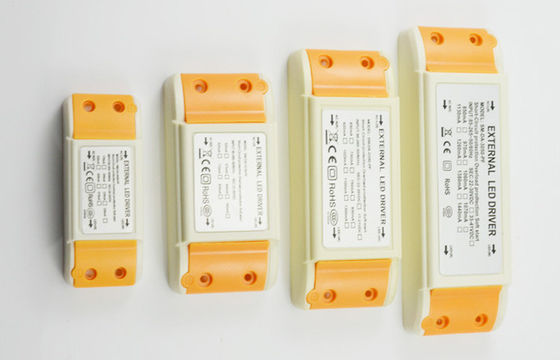

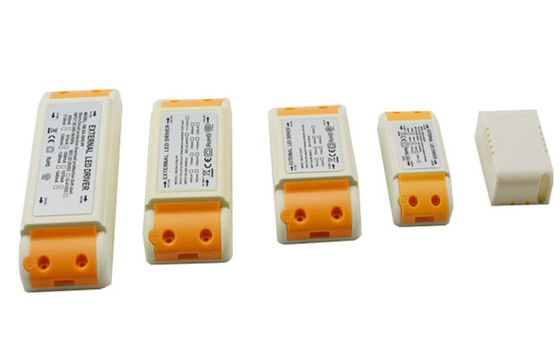

  • External driver size/weight: 115mm*45mm*28mm
  • Driver packing size/weight/quantity:
  • External driver packing size/weight/quantity:



Application:



  • Widely used in 20-30W LED Lighting.
