GAOXIN المجمع الصناعي، قوانغمينغ منطقة جديدة، مدينة شنتشن بمقاطعة قوانغدونغ، والصين | Angelwang66@126.com |
Place of Origin: | CHINA |
اسم العلامة التجارية: | WLINK |
إصدار الشهادات: | CE, ROHS |
Model Number: | WL-R210LH-d |
Minimum Order Quantity: | For WLINK brand, MOQ 1 unit, For OEM MOQ 50 units |
---|---|
الأسعار: | negotiation |
Packaging Details: | One set to one box, 20 units boxes to one carton |
Delivery Time: | Stock for small quantity, 5-7 working days for bulk order |
Payment Terms: | TT, L/C, Paypal, Western Union or Cash in advance |
Supply Ability: | 5000 sets / Per month |
Products Name: | LTE 4G Router | Type: | Industrial Class |
---|---|---|---|
Wireless Standard: | IEEE 802.11n | 4G Module: | Embeded Huawei 4G Module |
Mount Type: | Wall Mount or DIN Rail Mount | Interface: | 2 * LAN (1 * LAN, 1 * WAN optional) |
Frequency band: | 3G 900/200MHz | ||
تسليط الضوء: | Wireless 3G/4G Router,Industrial Grade Router,Industrial Grade Router |

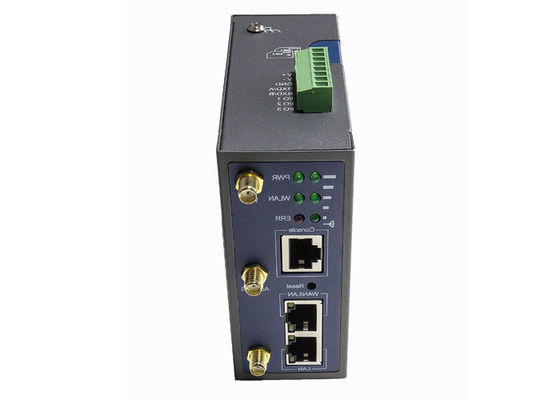

Industrial communication LTE 4G OpenVPN wireless router , Dual SIM Input Output
With multiple connectivity options, the WL-R210LH-d under R210 series router is a rugged and versatile router suitable for a diverse range of industrial M2M applications. It can provide solutions for industrial applications including video streaming, monitoring, broadcast and vehicle telemetry. the R210 router is an adaptable, multi-purpose device for all your data needs.
The WL-R210LH-d features dual-SIM capabilities which provides advanced redundancy functionality.
It aslo optional features GPS capability, enable it ideal for fleet tracking or access management.
As a special highlight WLINK R210 router offers two Ethernet ports that are highly configurable. Used as LAN ports they form a two port switch or have separated, routed IP networks. Configured as WAN port, an external modem or land line can be attached in order to add redundancy.
The RS-232 serial interface can act as serial device server or system console. Legacy equipment that does not have any Ethernet or USB port can be hooked up this way. Furthermore, the serial line can be assigned to the SDK and be controlled from there.
The router firmware supports common VPN technologies such as IPsec and OpenVPN. Simple handling of a Public key infrastructure makes is easy to connect two router trough a VPN tunnel.
Further services include DHCP server, DNS proxy server, DDNS agent, SNMP agent, telnet server, SSH server, web server, e-mail client and SMS client. The device is administrated via an easy to use web GUI or the command line interface. Over the air software update is both easy and fail-safe.
Basic Feature
Advance Optional Feature
Specification
Specification |
||||
OptionalSupport Mobile Network |
◎ LTE FDD 800/850/900/1800/2100/2100MHz HSPA+ 3G 900/2100MHz or 850/1900MHz |
Ethernet Standard |
◎ IEEE 802.3 |
|
Interface |
◎ 2×10/100Mb LAN interface ◎ 3× digital Input / Output |
LED instruction |
◎ PWR ◎ Signal ◎ WLAN ◎ ERR ◎ LAN (LAN, LAN/WAN) |
|
Route protocol |
◎ Static route ◎ RIPv2/OSPF dynamic route |
Power Supply |
◎ 7.5~32VDC |
|
Device |
◎ Local or remote web browser (IE v8 or above) |
WiFi |
◎ Standard: IEEE 802.11b/g/n |
|
Firewall & Filter |
◎ IP packet/Domain/MAC filter |
VPN |
◎ OpenVPN ◎ IPSec |
|
Power |
◎ Idle: 80mA@+12VDC |
Other |
◎ Dimension: 102mm x 100mm x 42mm (not including antenna) |
|
Standard |
EN 300 328 v 1.7.1 (2006-10) EN 301 511 EN 301 908-13 |
EN 60950-1, EN 62311:2008 AC:2011 |
Approval |
CE |
Applications:
Application |
|
Energy |
Digital Oil Field, Coal Mine, Solar, Smart Grid, |
Utilities |
Smart City, Traffic, Street lighting, Public Safety, 4G Public hotspot, Environment monitoring, Video Surveillance |
Industrial |
Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Remote Monitoring and control |
Retail |
ATM, POS(Point-of-Sale), Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, failover between WAN&4G/3G |
Transportation |
Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Bus Advertising |
Competitive Advantage:
Package:
