| GAOXIN المجمع الصناعي، قوانغمينغ منطقة جديدة، مدينة شنتشن بمقاطعة قوانغدونغ، والصين | Angelwang66@126.com |
 |
| Place of Origin: | China |
| اسم العلامة التجارية: | VAPOV |
| إصدار الشهادات: | CE FCC |
| Model Number: | VAP109AC |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| الأسعار: | negotiation |
| Packaging Details: | Color Box/Card Outside+Blister Inside Or Customized |
| Delivery Time: | 25 working days |
| Payment Terms: | 30% deposit, T/T, L/C, Western Union,Paypal |
| Supply Ability: | 300000 pcs per month |
| Output: | 5V 1.0A/2.1A | Type: | Single usb |
|---|---|---|---|
| Size: | 42*29*29 | Shell: | PC+ABS |
| Protection: | Short circuit Over charge Over heat Over voltage | Application: | iPhone, iPad, Android mobile phone, tablet,GPS, game player |
| Standard: | CE | ||
| تسليط الضوء: | 2.1A USB Wall Charger ,micro usb wall charger,micro usb wall charger |
||

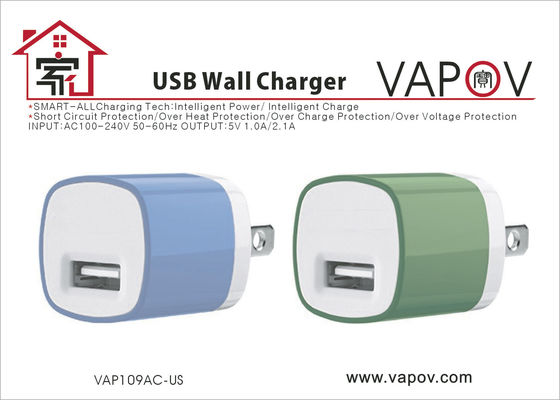

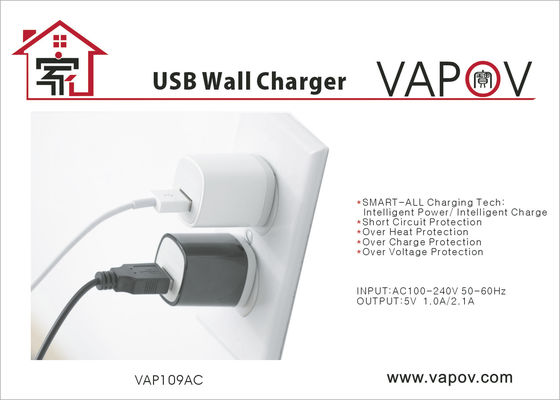

FCC PSE approved 1.0A single usb travel charger adapter , intelligent mobile phone usb charger
1. Product Features
SMART-ALL Tech:Intelligent Power/Intelligent charging
Automatically identify devices( Apple, Android, Samsung etc mobile phone and tablet) and charge devices at the most optimized output
2. Input Features:
1) Rated input voltage: AC100-240V 50-60Hz
2) Input voltage range: DC90-260V
3) Efficiency: 80-91%
3. Output characteristics:
|
Rated output 5V 1A/1.2A/ 2.1A |
Specification limits |
Remark |
|
|
Min value |
Max value |
||
|
Unload output voltage |
+4.9VDC |
+5.3VDC |
|
|
Full load output voltage |
+4.75VDC |
+5.25VDC |
|
|
Output current |
0 |
1.0A/2.1A |
|
|
Cc mode rate load cold ripple |
|
mV |
|
|
Over current protection |
|
A |
Adjustable |
|
Turn on delay time |
|
≤3S |
|
|
Hold up time |
8mS |
|
Full load |
4. Protective properties:
1) Over current protection
Under any input conditions,when output current is greater than the set current,the protection
mode is on, after output current become lower than the set current, the charger will
automatically restart work.
2) Short circuit protection
Under any conditions, when short circuit occurs the protection mode is on, after short circuit
disappears, the charger will automatically restart work.
3) Over temperature protection
After the charger works for a long time, if the temperature is higher than that of IC set working
temperature, the protection mode is on, if the temperature drops to IC set temperature again,
the charger will automatically restart work.
4) Over voltage protection
When output voltage is bigger than the set voltage, the protection mode is on, if the output
voltage drops to set voltage again, the charger will automatically restart work.
