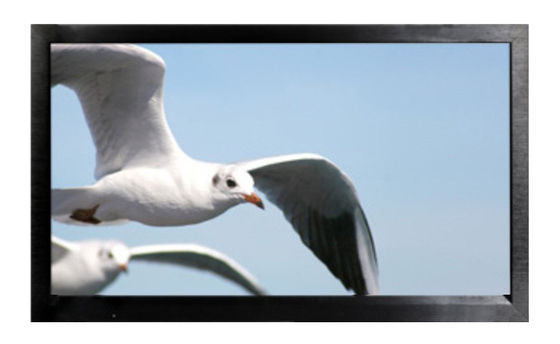

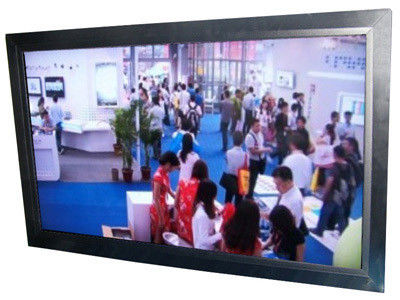

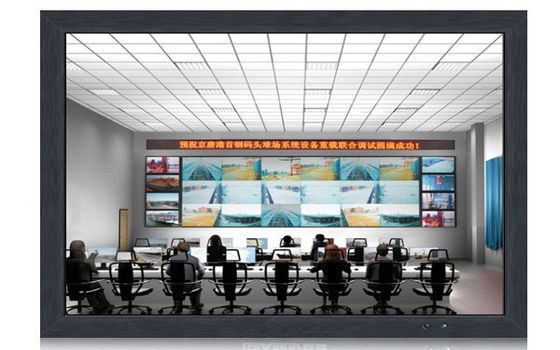

Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor

تفاصيل المنتج:

شروط الدفع والشحن:

Minimum Order Quantity:	2pcs
الأسعار:	negotiation
Packaging Details:	Inner 4CM PE foam,Middle export carton box,Outer export wooden box
Delivery Time:	7-25 days
Supply Ability:	3000PCS/month

اتصل

مفصلة وصف المنتج

تسليط الضوء:

lcd cctv monitor,lcd computer monitor

Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor

Features

Dual infrared touch screen frame

USB or VGA interface available

Spill proof and Anti Dust

True Flat designed to suit harsh environment

Best choice for space limited retail/hospitality settings

Easy for installation - One USB cable needed

Durable Die-casting Aluminum base design for touch version

LCD Specification

LCD Size-21.6" , 16:9 LCD-Full New LCD screen from Samsung/LG/AU/CHIMEI

Screen Resolution:1920*1080

Colour-16.7m

Brightness-450cd

Contrast-300.1

Response Time-16-25ms

Interface-VGA (optional AV/TV/HDMI)

Power Supply built-in-AC 100V-240V

Screen Parameter

Transmittance	≥92%, 100% max (without Glass)
Outline Dimension	524(W±2.0)X343(D± 2.0)X8mm(H± 0.5)
Detection Form	Infrared rays interception detection form
Active Area	473mm(W)x296mm(D)
Resolution	1920(W)x1020(D)
Output Format	Coordinate Output
Optical Element Pace	5.97mm
Minimum Touch body Diameter	>5mm
Response Speed	16ms—25ms
Touch Accuracy	±1.5mm
Touch Limitation	No Limitation

Electricity

Scan Frequency		50Hz
USB1.1	Connector type	A type
	Transmission speed	12Mbps
	Signal	+5V, D-, D+, GND
	Connector	USB A Port connector for cable
Temperature Range		Operating -40°C~70°C
		Storage -40°C ~80°C
Humidity		Operating 0%-85%, non condensing
		Storage 0%-95%, non condensing
Power Supply		DC 5V ± 5%, 270mA~290mA
Communication Interface		USB Port or RS232 (Plug & Play, No Drive)
Communication Distance		25Meter
