Key Features
Output power: 250W
Wide input range: 176-264VAC
High conversion efficiency: Up to 96%
Isolation Voltage :1,500V
RoHS compliant
Product Overview

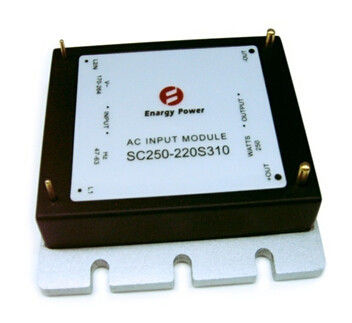

SC series ac AC/DC module,has the advantages of small size, high efficiency, effectively save cost and space.
Product’s Introduction
The SC250 series is an independently regulated single output converter that uses the industry standard quarter brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.
Electric Characteristics
Input Characteristics
Parameter | Min | Typ | Max | Units | Notes |
Input voltage range | 170 | 220 | 264 | Vac | Continuous |
Maximum Input Current |
|
| 2 | A | Full load, Min input |
Efficiency | 95 | 96 |
| % |
|
Dissipation |
| 0.4 |
| W | No load |
Maximum Output Cap. |
| 200 |
| uF | Capacitance Voltage ≧ 450V |
Output Characteristics
Parameter | Min | Typ | Max | Units | Notes |
Output Voltage Range | 230 |
| 375 | Vdc |
|
Output Power: |
|
| 250 | W |
|
Isolation Characteristics
Parameter | Min | Typ | Max | Units | Notes |
Isolation voltage | 1500 |
|
| Vdc | Output And Input to Base |
Isolation Resistance | 100 |
|
| MΩ | At 500VDC to test it when atmospheric pressure and R.H. is 90%, Output And Input to Base |
Standards Compliance
Parameter | Notes |
UL/cUL60950 |
|
EN60950 |
|
GB4943 |
|
Needle Flame Test (IEC 695-2-2) | Contains all the devices |
IEC 61000-4-2 |
|
Qualification Specification
Parameter | Notes |
Vibration | Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis |
Mechanical Shock | Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction |
Cold(in operation) | IEC60068-2-1 Ad |
Damp heat | IEC60068-2-67 Cy |
Temperature Cycling | -20°C to 85°C, ramp 15°C/min., 500 cycles |
Power/Thermal Cycling | Vin = min to max, full load, 100 cycles |
Design Marginality | Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load |
Life Test | 95% rated Vin and load, units at derating point, 5000 hours |
Solderability | IEC60068-2-20 |
Typical Wave and Curves
Figure 1: Efficiency vs. output power, 25°C,400LFM
Figure 2: Power dissipation vs. output power, 25°C,400LFM
Mechanical Outline
Pin Designations
Pin No. | Name | Function |
1 | L2/N | AC Input |
2 | L1/L | AC Input |
3 | +OUT | DC output anode |
4 | -OUT | DC Output cathode |
