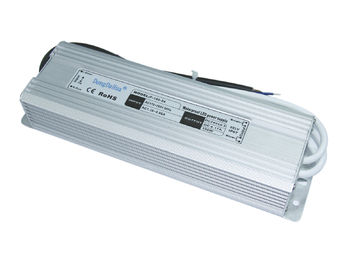

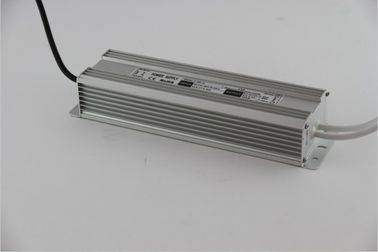

Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters

Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters

  • Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters
  • Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters
  • Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters
  • Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters
Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters
تفاصيل المنتج:
Place of Origin: Shenzhen China
اسم العلامة التجارية: DongDaHua
إصدار الشهادات: CE & ROSH
Model Number: F-100-24
شروط الدفع والشحن:
Minimum Order Quantity: 50pcs
الأسعار: Factory Price
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 4000 Pieces/Day
اتصل
مفصلة وصف المنتج
Product Name: Waterproof LED Driver IP: IP67
إصدار الشهادات: CE & ROSH Output voltage: 12v 24v
Output Power: 100W
تسليط الضوء:

LED Light Power Supply, 12 volt led driver

,

12 volt led driver

IP67 12v 24v Waterproof LED Driver AC Power Supply Built-in EMI Filters


Quick detail:

Power: 100W

Input: AC110-264V

Output: DC 12V 24V

Size:  248*72*45

Certificate: CE&ROHS

Warranty: 2 years



Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty



Specifications:


Product Electric Parameters

Input specification

Input voltage

AC170V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC 40A@230VAC

Output specification

Start-up time

≦1S (230V Input, Io=100%)

keep time

≧20mS (230V Input, Io=100%)

Voltage regulation

(full)≦0.5%

Protection function

Overload protection

105% - 150% rated power, automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input--ground

1500VAC/1min

Output---ground

500VAC/1min

Safety standards

According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

230(L)*72(W)*45(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

1.2KG/Pcs


Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.


Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble >50, 000 hours


Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters 0



































Quality assurance:

Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters 1

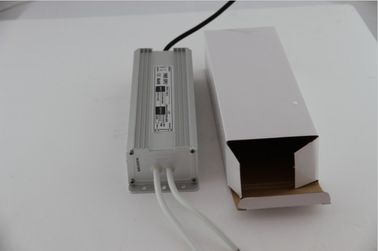

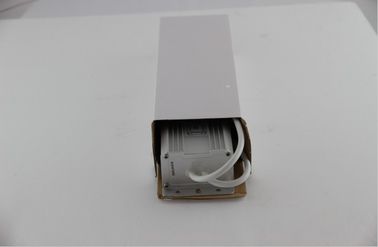

Delivery:


Mini 12v 24v Waterproof 100W LED Driver / AC DC Power Supply With EMI Filters 2
