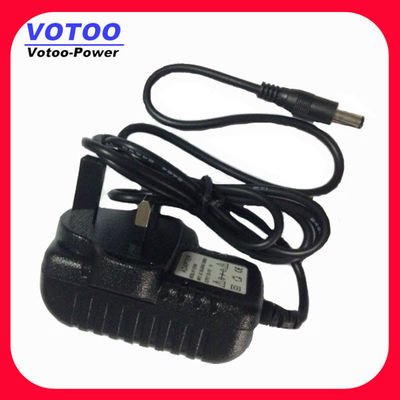

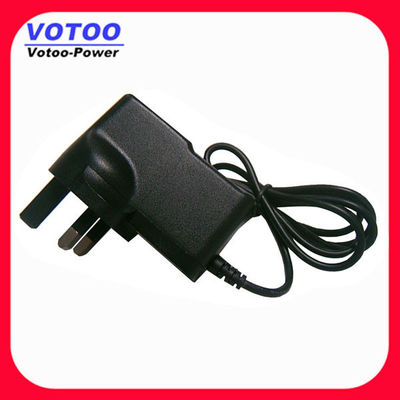

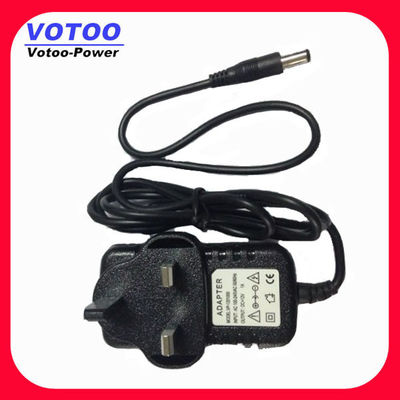

12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters

12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters

  • 12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters
  • 12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters
  • 12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters
  • 12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters
12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: VOTOO
إصدار الشهادات: CE,ROHS
Model Number: VP-1203000
شروط الدفع والشحن:
Minimum Order Quantity: 100pcs
الأسعار: negotiation
Packaging Details: white box
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
اتصل
مفصلة وصف المنتج
تسليط الضوء:

dc power supply adapter, ac to dc power converter

,

ac to dc power converter

12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters



Quick Detail:



  1. Type: Free Samples Available 12V DC 3.0A 36W AC Wall Mount Switching Power Adapter
  2. Material: PC+ABS
  3. Certificate: CE & RoHS
  4. OEM/ODM welcome
  5. 100% Full load & buring test
  6. Free sample can be sent
  7. Dc plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc.
  8. Protections:Short circuit/Over load/Over voltage/ Over temp




Description:


Features:



Input: 100 to 240V AC,1.0-0.6A, 50 to 60Hz

Output:12V DC 3.0A


Protection: over-current, voltage and auto recovery


Output protection: over-load and short-circuit protection


AC inlet: plug-in type


Insulation Strength: Class A


Operating Temprature: -10°C~+40°C (10-90%R.H)


Storage Temprature: -40°C~+60°C (10-90%R.H)


Operating Humidity: 10% ~ 90% RH Non-condensing


Storage Humidity: 5% ~ 95% RH Non-condensing


Case materials: PC, ABS, or equivalent

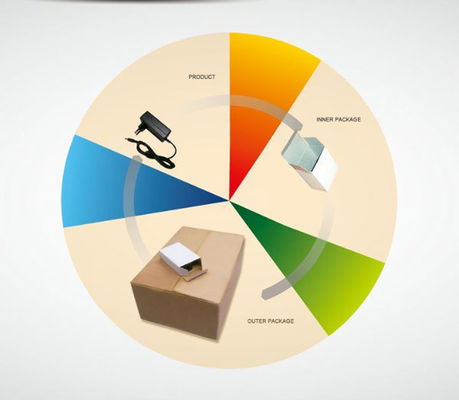

Packing details:1 piece per plastic bag + inner box (negotiate when order)



o High Efficiency

o Short Circuit Protection

o Over Voltage Protection

o Over Current Protection

o Green Circuit Design





o Accurate information and descriptions.

o All orders are shipped on time.

o All items are fully inspected prior to shipping to meet international standards by our QC staffs.

o All items are with CE RoHS approval to ensure the products quality.



Votoo integrated device design, low temperature rise, low calorific value.

High stability, drive stable work, output current constant, no drift.

Competitive Manufacture price

OEM and Small trial order accepted

Short Leading time

Installed with EMI filter ,minimum wave

Green Power,full complies with CE

Soft-start current can reduce the AC input impact efficiency




1. Strictly 100% full load testing and aging testing

2. Withstand 3000v high voltage

3. 12 months warranty, during warranty time, recomplenish the defaulted
    products without any additional cost.

4. OEM & ODM Service Acceptable

5.  Convinient to travel around the world

6. Fast delivery with good quality



Specification:


Input voltage:

100-240V AC,50/60HZ

Output:

12V  3A  36W

Loading regulation:

±5%

Over-voltage protection:

115%-135%^

Over-current protection:

130%-150%

Operating temperature:

-10-45°C

Storage Temperature:

-20-85°C

Operatingr relative humidity:

20%-90% RH

Withstanding voltage:

3,000V AC(minimum),5mA(maximum)

MTBF:

over 50,000 hours with full load in 25°C ambient condition





How to Install?



  1. Connect power supply to the supplied unit.
  2. Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  3. Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  4. The power supply should be installed in a location with good airflow.
  5. Power supply can only be installed indoors.





Applications:



1. CCTV security, door access, digital camera, etc.

2. POS machine, mini printing machine, etc.

3. Electronic scale, flowerpot etc.

4. Can be suitable for Mobile phone charger, cell phone charger, MP3/MP4 player charger, digital camera, led power driver, tv power supply, cctv power supply,lcd power supply, video game player or small power electrical equipment power supply, etc



12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters 0



12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters 1



12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters 2
