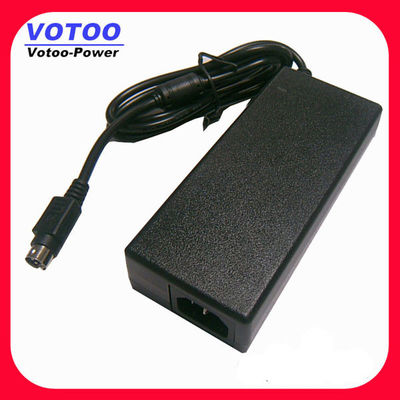

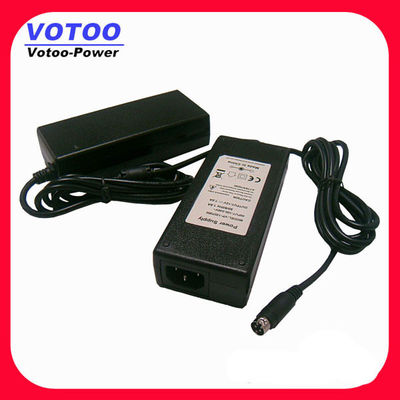

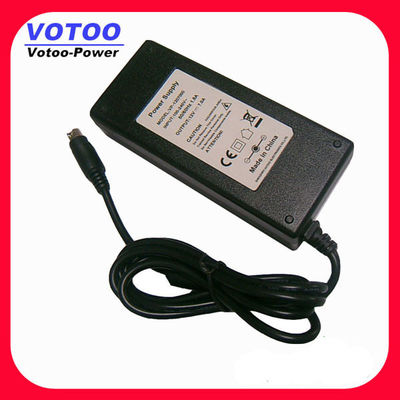

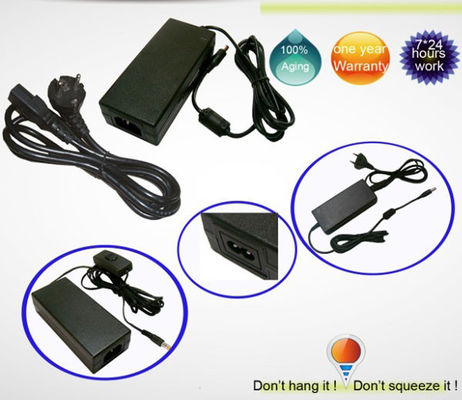

7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters

7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters

Quick Detail:

1. Type: desktop type
2. AC plug: EU,US,AUS,UK,CN etc.
3. Dc plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc.
4. No load power consumption< 0.3W
5. 100% aging test before shipment
6. Certificate: CE & RoHS
7. OEM/ODM welcome

Description:


Features:

o Universal Input 100~240VAC 50/60Hz

o Small volume, light weight, high efficiency.

o Cooling by free air convection.

o 100% Full load burn-in test.

o One year warranty.

o Output Voltage: 12V

o Output Current: 7A

o Power: 84Watt

o Ripple & Noise: 1% of Output Voltage

o Leakage Current: 0.25mA

o No load power Consumption

o Working Temperature:0-40°C Max

o Efficiency:86%Min

Protections

1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection

4Short-circuit protection: automatic recovery ­

5Load regulation: ±5%

Environmental requirement

1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) ­

5Insulation resistance: DC 500V 100MΩ (minimum) ­

Weight: 380g

Dimensions: 140*60.5*34.5mm

1. AC input power suitable for the world2. Soft-start current can reduce the AC input impact efficiency

3. With short-circuit and overload protection

4. Compact size ,light weight

5. 100%full-load burning test

6. Installed with EMI filter ,minimum wave

Specification:


How to Install?

1. Before connecting check whether the power supply fullfields electrical specification (output voltage and current). Also check the socket type and its polarity.
2. Connect power supply to the supplied unit.
3. Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
4. Do not install power supply in locations with high humidity, dust or strong direct sunlight.
5. The power supply should be installed in a location with good airflow.
6. Power supply can only be installed indoors.
7. AC wire should connect tight with adapter socket, in case poor contact socket.



Applications:

1. CCTV security, door access, digital camera, etc.

2. POS machine, mini printing machine, etc.

3. Electronic scale, flowerpot etc.

4. LED strip, LED lighting etc.
