| GAOXIN المجمع الصناعي، قوانغمينغ منطقة جديدة، مدينة شنتشن بمقاطعة قوانغدونغ، والصين | Angelwang66@126.com |
 |
| Place of Origin: | China |
| اسم العلامة التجارية: | Meanwell |
| إصدار الشهادات: | CE,ROHS, TUV, UL |
| Model Number: | RS-35 Single Output Switching Power Supply |
| Minimum Order Quantity: | Negotiable |
|---|---|
| الأسعار: | Negotiable |
| Packaging Details: | Export Standard Packaging |
| Delivery Time: | 5-7 work days after receiving deposit |
| Payment Terms: | Ex works |
| Supply Ability: | 30000pcs/month |
| DIMENSION: | 99*82*36mm (L*W*H) | PACKING: | 0.3Kg; 45pcs/14Kg/0.83CUFT |
|---|---|---|---|
| Product Type: | Meanwell RS-35 Series Switching Power Adapter | DC Voltage: | 3.3V, 5V, 12V, 15V, 24V, 48V |
| Overload protection: | 110%~150% hiccup mode, auto-recovery (150% ~190% for RID-125-1205/2405) | WORKING HUMIDITY: | 20 ~ 90% RH non-condensing |
| SAFETY STANDARDS: | UL60950-1, TUV EN60950-1 approved | WORKING TEMP.: | -25 ~ +70 (Refer to "Derating Curve") |
| تسليط الضوء: | high power led power supply,LED Light Power Supply,LED Light Power Supply |
||

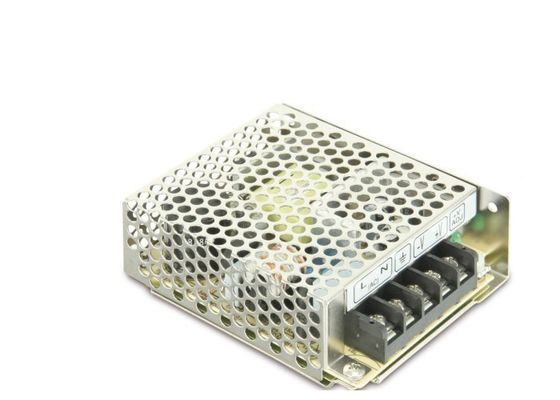

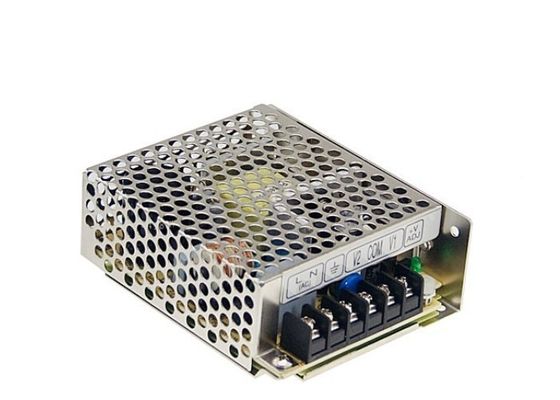

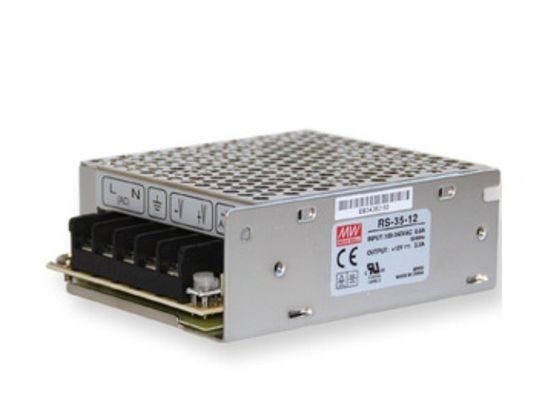

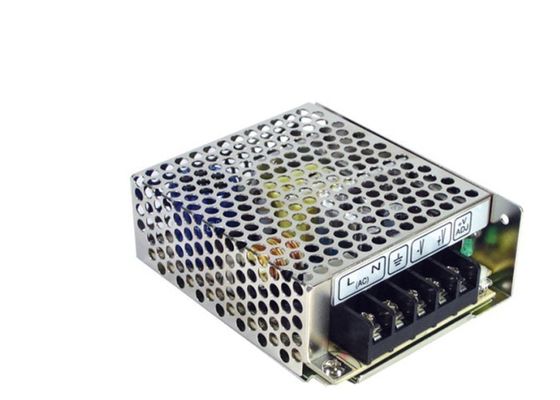

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
G3 Series RS-35 Enclosed Switching Power Supply Features:
1. Universal AC input / Full range
2. Protections: Short circuit / Over load / Over voltage
3. Cooling by free air convection
4. LED indicator for power on
5. 100% full load burn-in test
6. No load power consumption <0.5W
7. All using 105 celsius long life electrolytic capacitors
8. Withstand 300VAC surge input for 5 second
9. High operating temperature up to 70
10. Withstand 5G vibration test
11. High efficiency, long life and high reliability
12. 3 years warranty
Meanwell G3 Series AC Switching Power Adapter:
RS-15 / RS-25 / RS-35 / RS-50 / RS-75 / RS-100 / RS-150
RD-35 / RD-50 / RD-65 / RD-85 / RD-125
RID-50 / RID-65 / RID-85 / RID-125, RT-50 / RT-65 / RT-85 / RT-125
RQ-50 / RQ-65 / RQ-85 / RQ-125
Quick Details:
| 35W - Single Output | ||||
| Model No. | Output | Tol. | R&N | Effi. |
| RS-35-3.3 | 3.3V, 0~7.0A | ±3% | 80mV | 76.5% |
| RS-35-5 | 5V, 0~7.0A | ±2% | 80mV | 80.5% |
| RS-35-12 | 12V, 0~3.0A | ±1% | 120mV | 84.5% |
| RS-35-15 | 15V, 0~2.4A | ±1% | 120mV | 86.0% |
| RS-35-24 | 24V, 0~1.5A | ±1% | 200mV | 88.0% |
| RS-35-48 | 48V, 0~0.8A | ±1% | 200mV | 88.5% |
General Specifications:
| Model No. | RS-35 RD-35 |
| AC input voltage range | 85~264VAC, 120~373VDC |
| AC inrush current (max.) | 36A at 230VAC |
| DC adjustment range |
±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | 110%~150% hiccup mode, auto-recovery (150% ~190% for RID-125-1205/2405) |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -25~+70°C (refer to the derating curve for different models) |
| Vibration |
10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards |
EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH)(mm) | 99x 82x 36 |
| Case No. | 932A |
| Packing | 45pcs /14.0kg |
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 celsius of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12'' twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, you can refer to "EMC testing of component power supplies" or contact our sales.
Meanwell AC Switching Power Supply of Our Product Range:
G3 Series
NE Series
SE Series
LRS Series
Your inquiries are highly welcome!
اتصل شخص: Miss. Angel
الهاتف :: 1598940345
الفاكس: 86-755-3697544
