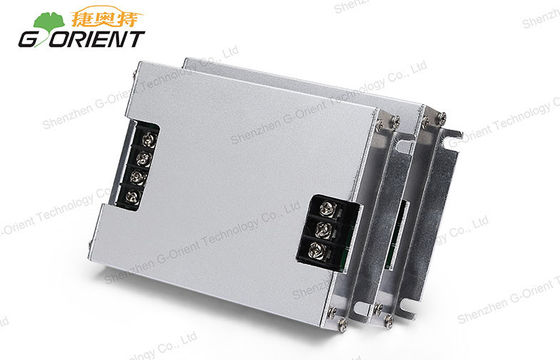

90W LED Switching Power Supply 18mm DC4.5V 20A with Efficiency 94%

90W LED Switching Power Supply 18mm DC4.5V 20A with Efficiency 94%

  • 90W LED Switching Power Supply 18mm DC4.5V 20A with Efficiency 94%
90W LED Switching Power Supply 18mm DC4.5V 20A with Efficiency 94%
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: G-ORIENT
إصدار الشهادات: ISO9001 / CE / ROHS / FCC
Model Number: NHD100-4.5-A
شروط الدفع والشحن:
Minimum Order Quantity: 10pcs
الأسعار: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
اتصل
مفصلة وصف المنتج
Ripple & Noise: ≤200mVp-p Application: On-board screen, Taxi LED sign
High efficiency: 94% Output power: 90W
Input: 9-36V DC Output: 4.5V DC / 20A
Size: 120*80*18mm Case material: Metal, aluminium
تسليط الضوء:

adjustable switching power supply,switched mode power supply

,

switched mode power supply


90W LED Switching Power Supply Size:120*80*18mm, DC4.5V 20A with Efficiency 94%

Features:
* Aluminum metal shell,natural cooling
* 2 years warranty
* High efficiency 94% & small size
* Low output ripple and noise



Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.


Specifications:

Switching power supply

 NHD100-4.5-A

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~20A

Rated Current

 20A (2 independent output)

Rated Power

 90W

Ripple & Noise(max.)

 <200mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃





Competitive Advantage:

* Output over-current,short-circuit,over-load,over-voltage protection

* High efficiency up to 94%

* The two level output over voltage protection

* Ultra-thin 18mm

* Low output ripple and noise

* CE / ROHS / FCC approval


Company Advantage:
* High quality products
* Standardized production process
* Short lead time
* Professional R&D team
