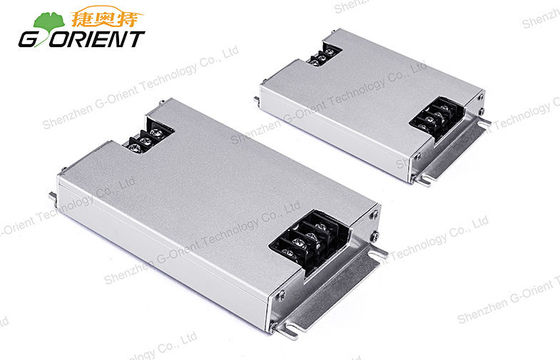

2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W

2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W

  • 2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W
2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W
تفاصيل المنتج:
Place of Origin: China
اسم العلامة التجارية: G-ORIENT
إصدار الشهادات: ISO9001 / CE / ROHS / FCC
Model Number: NHD100-4.2-A
شروط الدفع والشحن:
Minimum Order Quantity: 10pcs
الأسعار: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
اتصل
مفصلة وصف المنتج
Application: On-board screen, Taxi LED sign Input: 9-36V DC
Operating temperature: -40℃ ~ +60℃ Standard: CE / ROHS / FCC
Output power: 100W Output: 5V DC / 20A
High efficiency: 94% Size: 120*80*18mm
تسليط الضوء:

adjustable switching power supply,switched mode power supply

,

switched mode power supply



2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W


Competitive Advantage:
* CE / ROHS / FCC approval
* Low output ripple and noise
* Ultra-thin 18mm
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* High efficiency up to 94%


Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.


Specifications:

Switching power supply

 NHD100-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~20A

Rated Current

 20A

Rated Power

 84W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC20V

 Others

Dimension

 120*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs




Features:
* Low output ripple and noise
* High efficiency 94% & small size
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Through the EMC certification
* Input reverse connect protection
* Aluminum metal shell,natural cooling


Company Advantage:
1. OEM&ODM,any your customized lightings we can help you to design and put into product
2. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area,ideas of design and all your private information
5. Your inquiry related to our products or price will be replied in 24hrs
.
