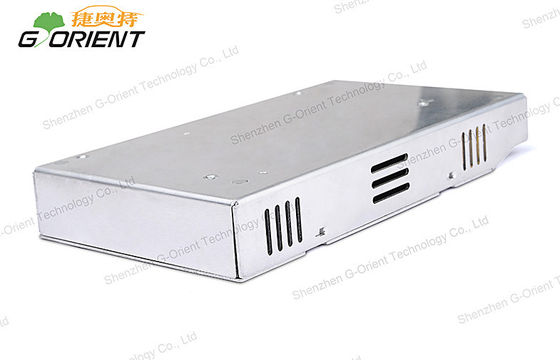

Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display

تفاصيل المنتج:

Place of Origin:	China
اسم العلامة التجارية:	G-ORIENT
إصدار الشهادات:	ISO9001 / CE / ROHS / FCC
Model Number:	NHI200-5-A

شروط الدفع والشحن:

Minimum Order Quantity:	10pcs
الأسعار:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS,Carton Size:332018cm
Delivery Time:	10 - 15 working days after received your payment
Payment Terms:	T/T, Paypal, Western Union, L/C
Supply Ability:	50,000pcs per month

اتصل

مفصلة وصف المنتج

Size:	1908530mm	High efficienc:	85%
Output Type:	Single	IP Grade:	IP20
Output Power:	200W	Input:	200-240V AC
Output:	5V/40A	Case material:	Metal, aluminium
تسليط الضوء:	led light power supply,led power supplies , led power supplies

Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display

Applications:

* urban landscape lighting

* LED Lighting

* Stage

* Military project

* Communication security equipment

* indoor and outdoor advertising screens

* New energy and other Various industries

Features:

* Fixed switching frequency at 90KHz

* Low cost,high reliability

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Withstand 300vac surge input for 5 second

* 2 years warranty

* Built-in constant current limiting circuit

* 100% full load burn-in test

Specifications:

Switching power supply		NHI200-5-A
OUTPUT	DC Voltage	5V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	200W
	Ripple & Noise(max.)	<250mVp-p
	Voltage ADJ.Range	4.5~5.6V
	Voltage Tolerance	+/- 2.0%
	Line Regulation	+/- 0.5%
	Load Regulation	+/- 1.0%
	Setup,Rise Time	1000ms,50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage Range	200-240VAC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	83-88%
	AC Current	2.5A/230VAC
	Inrush Current(max.)	55A/230VAC
	Leakage Current	< 3.5mA /240VAC
Protection	Over Load	105 ~ 150% rated output power
	Over Load	Protection type: Constant current limiting,recovers automatically after fault condition is removed
	Over Voltage	5.75~ 7.0V
	Over Voltage	Protection type: Shut down O/P voltage,re-power on to recover
	Over Temperature	100℃ +/- 5℃
	Over Temperature	Protection type: Shut down O/P voltage,recovers automatically after temperature goes down
Environment	Working Temp.	-20 ~ +50℃ (Refer to output load derating curve)
	Working Humidity	20 ~ 90% RH, non-condensing
	Storage Temp., Humidity	-20 ~ +85℃, 10 ~ 95% RH
	Temp.Coefficient	+/-0.03%/℃ (0 ~ 50℃)
	Vibration	10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes
Safety	Safety standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH
Others	MTBF	271.9K hrs min. MIL-HDBK-217F(25℃)
	Dimension	1908530mm (LWH)
	Packing	0.8kg; 20pcs/16Kgs
Note	1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.
	3. Tolerance: includes set up tolerance,line regulation and load regulation.
	4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage
